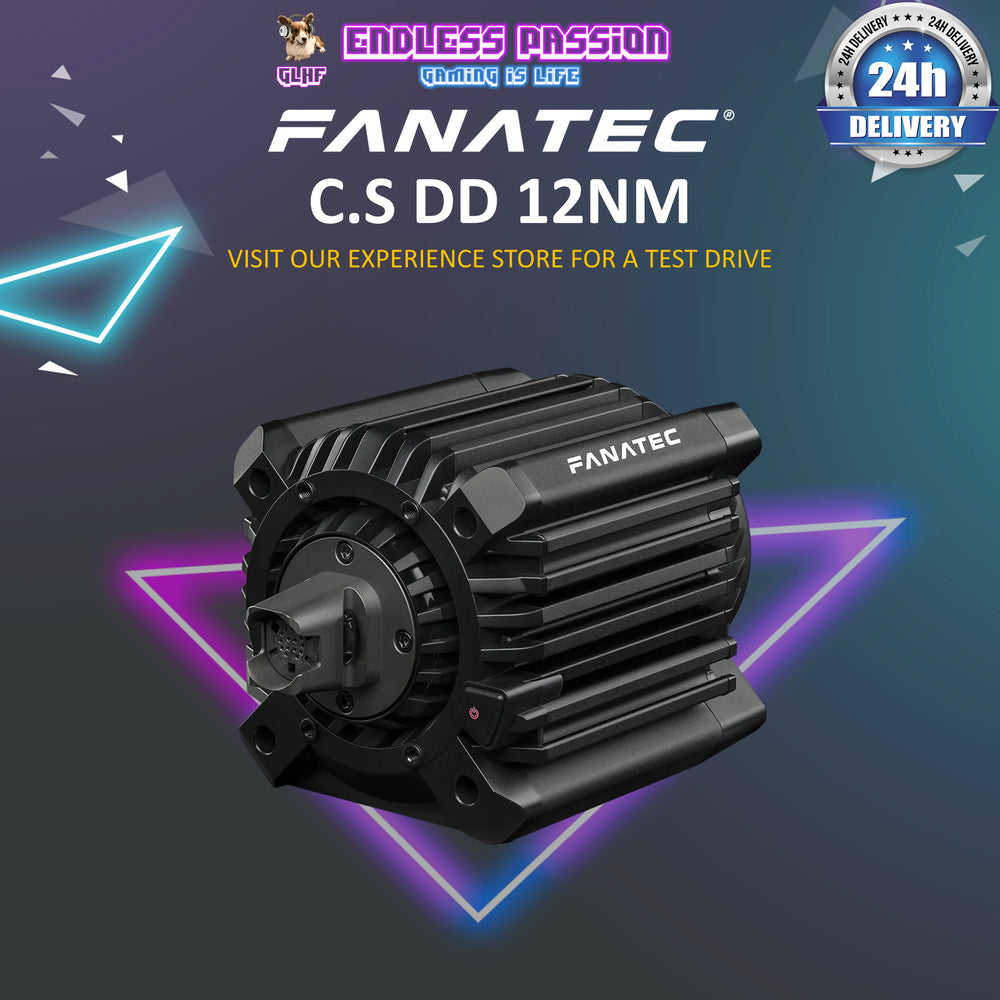

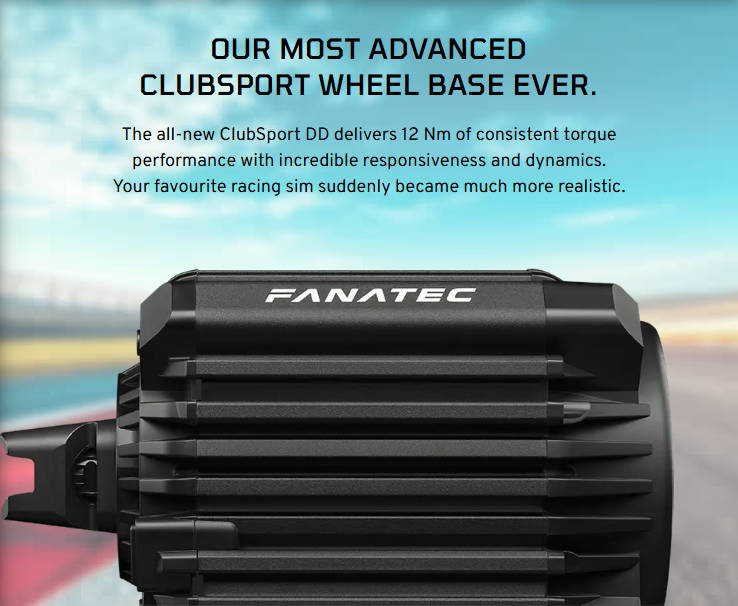

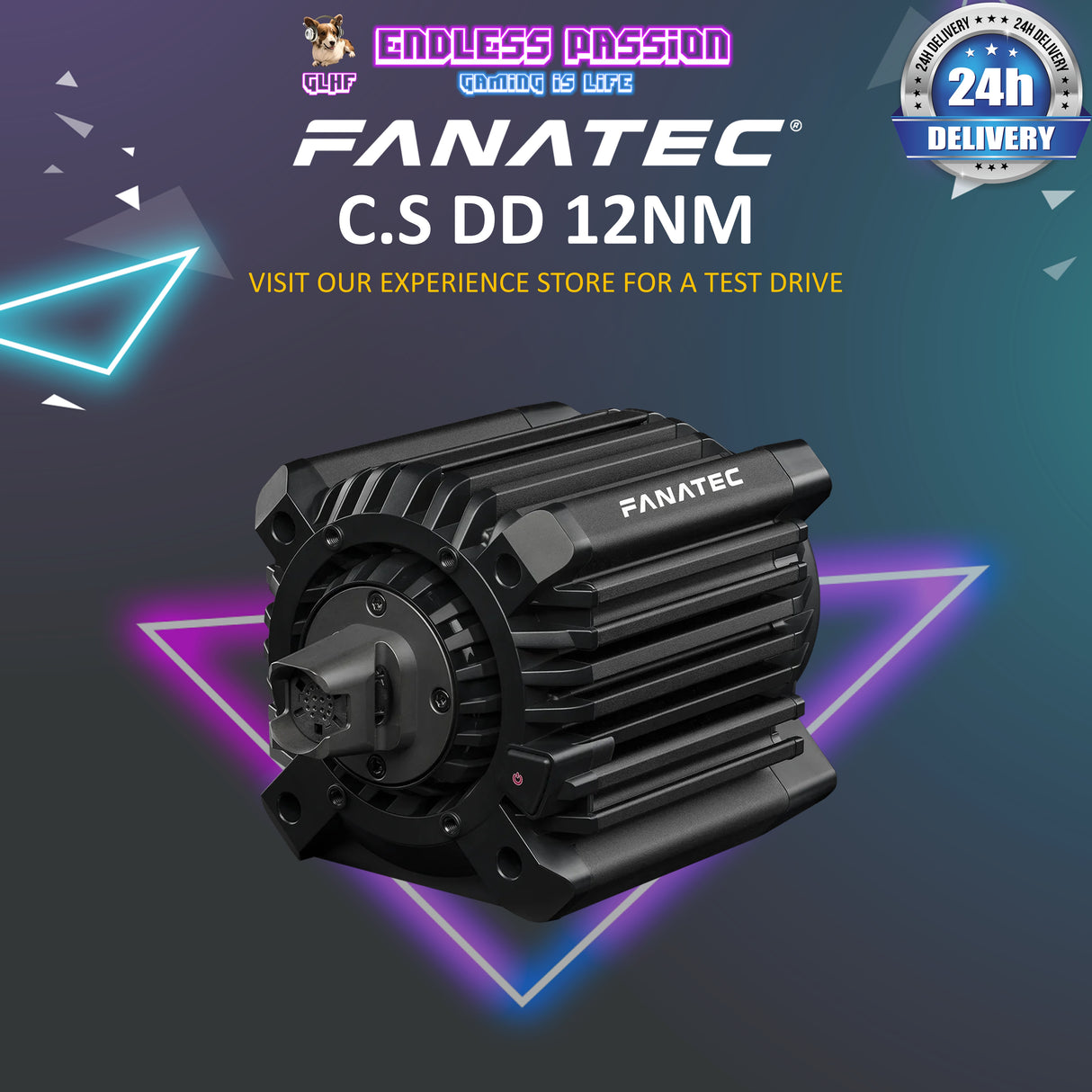

FANATEC C.S DD [PRE-ORDER] 3.0 kg

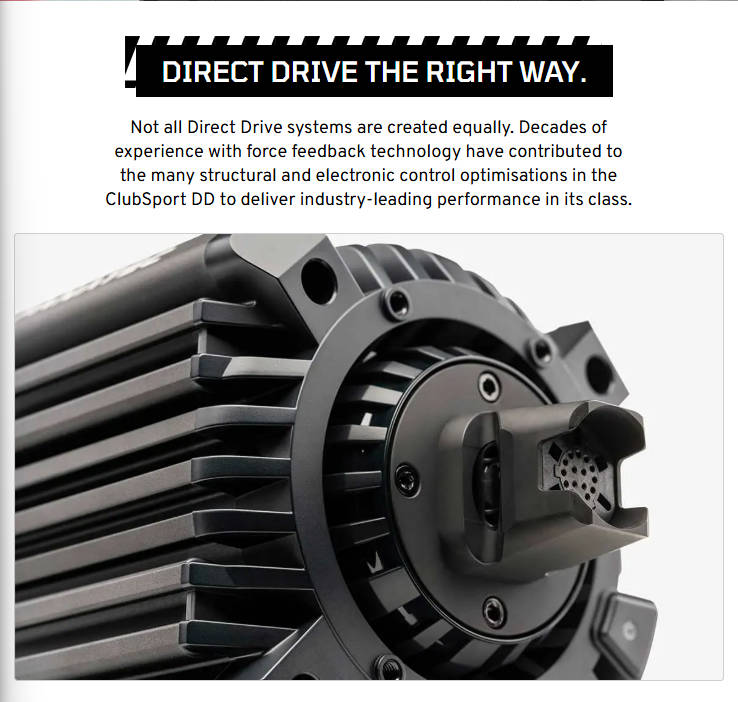

Direct Drive servo motor

Custom-designed in Germany for the ClubSport DD specifically for sim racing

12 Nm consistent torque

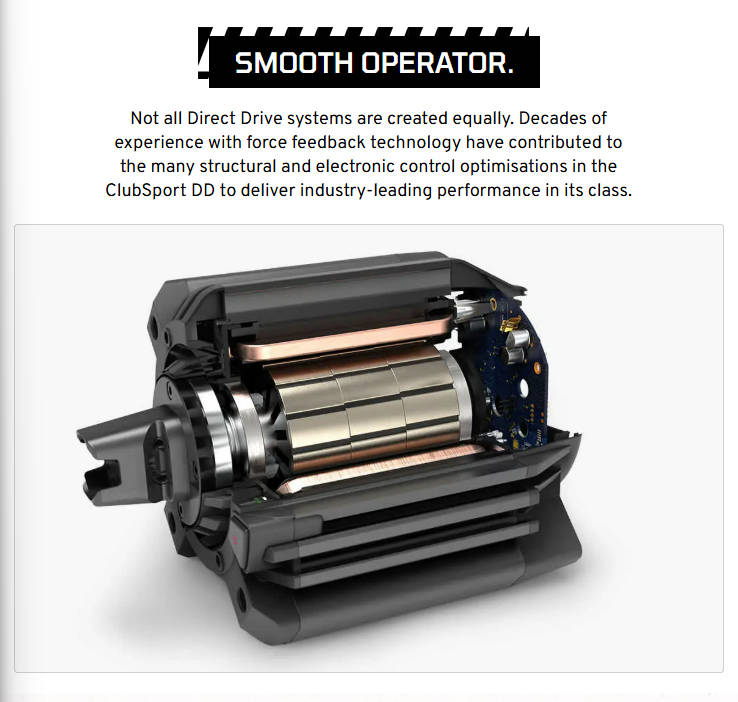

Optimised skew angle on rotor magnets reduces cogging torque

Patented, exclusive FluxBarrier technology improves motor efficiency and smoothness

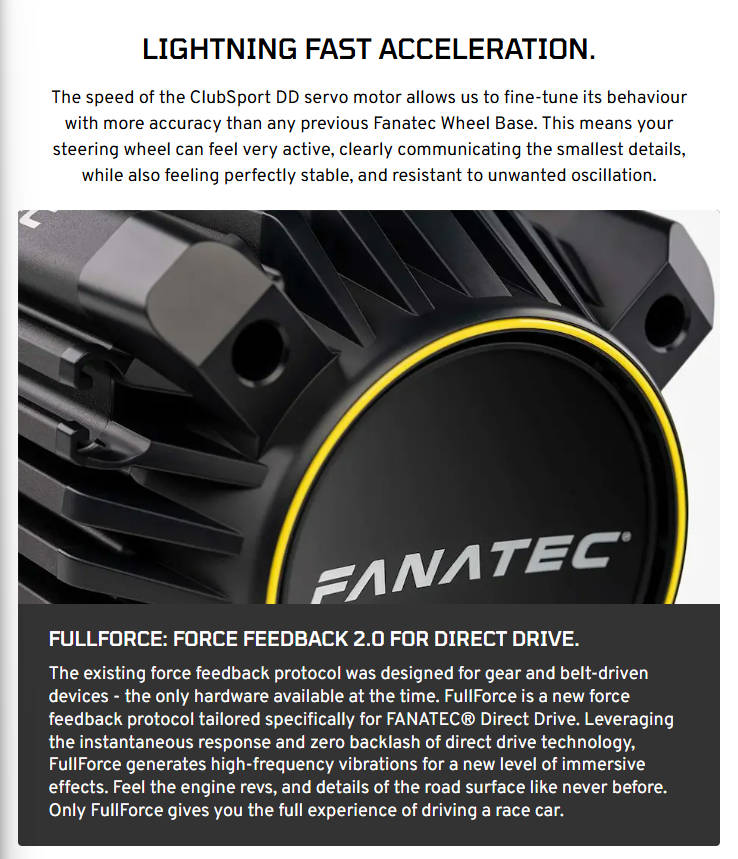

FullForce technology

New force feedback protocol developed for Fanatec Direct Drive

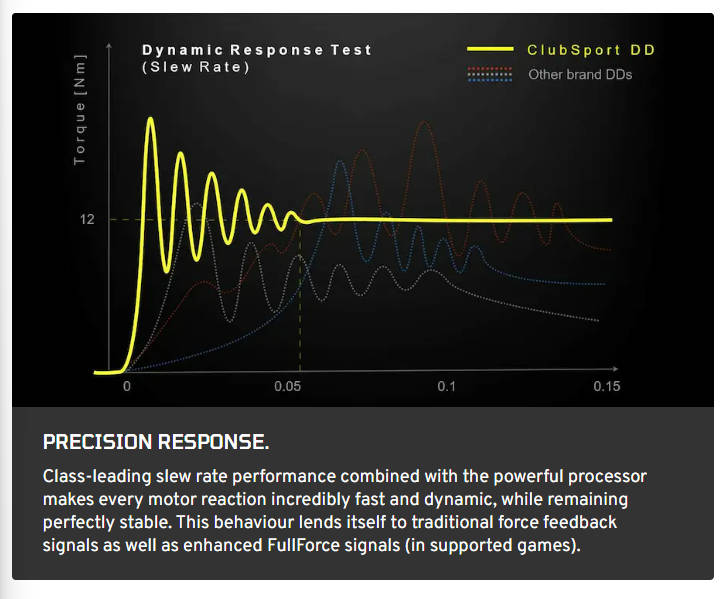

Super low-latency detail effects through fine motor frequency control

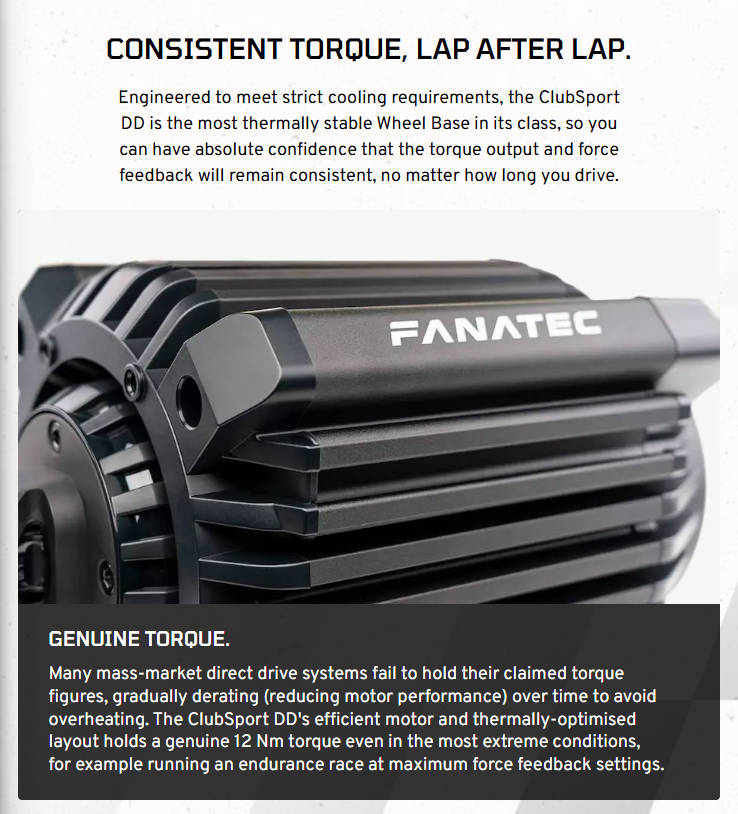

Passively cooled Wheel Base

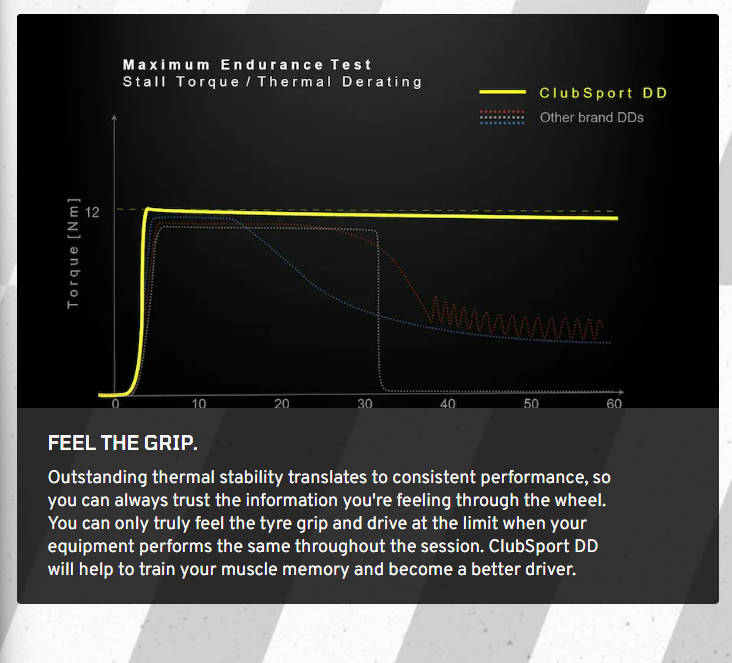

Most thermally stable Wheel Base in its class

Consistent performance under the most extreme conditions

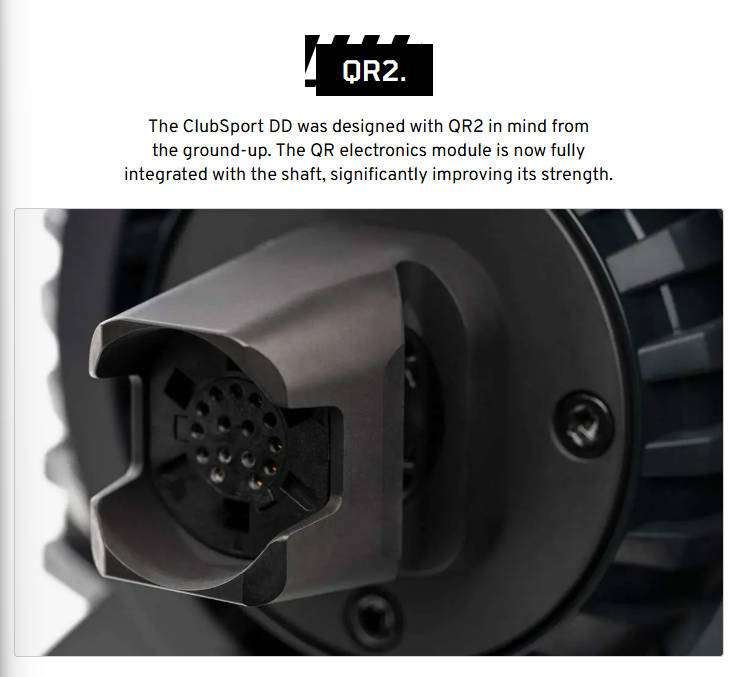

QR2

Wheel Base optimised for QR2 from the ground-up

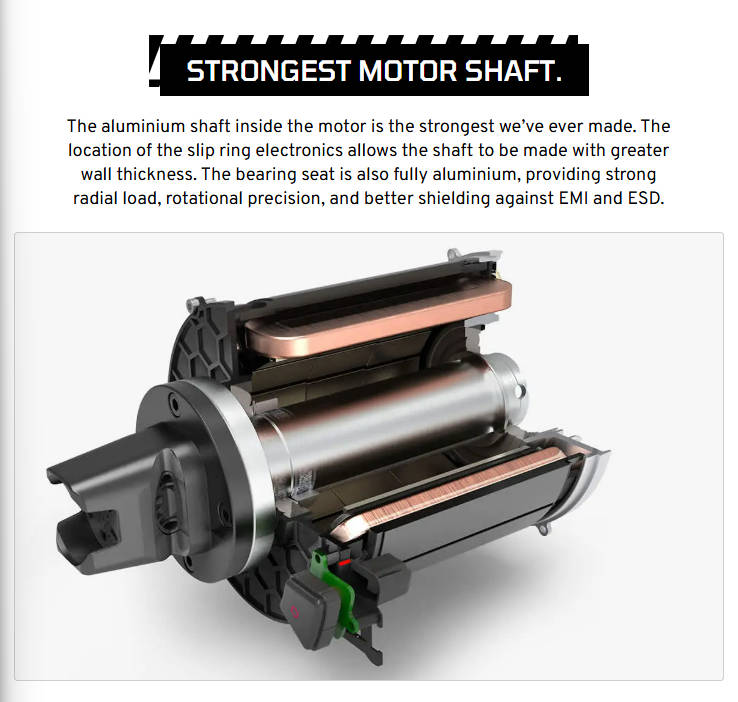

Electronics module integrated with shaft

Diecast aluminium with CNC-machined finish

Motorsport-derived quick release system

Designed for Windows PC, can be used on Xbox when fitted with an Xbox licensed Steering Wheel

Full Fanatec SDK support ensures compatibility out of the box for all major racing games

Standard Tuning Menu allows beginners to get started quickly without having to worry about settings

Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences

High-resolution (contactless) Hall-position-sensor

Rotation: 2520 degrees (electronically limited, adjustable)

Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data between Steering Wheel and Wheel Base without the need for a mechanical limiter (allows for high steering angle settings)

Compatible with entire Fanatec ecosystem (see Compatibility section for details)

T-nut rail system on sides and bottom for easily adjustable hard-mounting

Ports:

Power supply

USB-C to PC / console

Shifter 1

Shifter 2 (Sequential only)

Pedals

Handbrake

CAN (for future Fanatec peripherals)

Front-mounted threaded inserts for future Fanatec accessories. Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.
