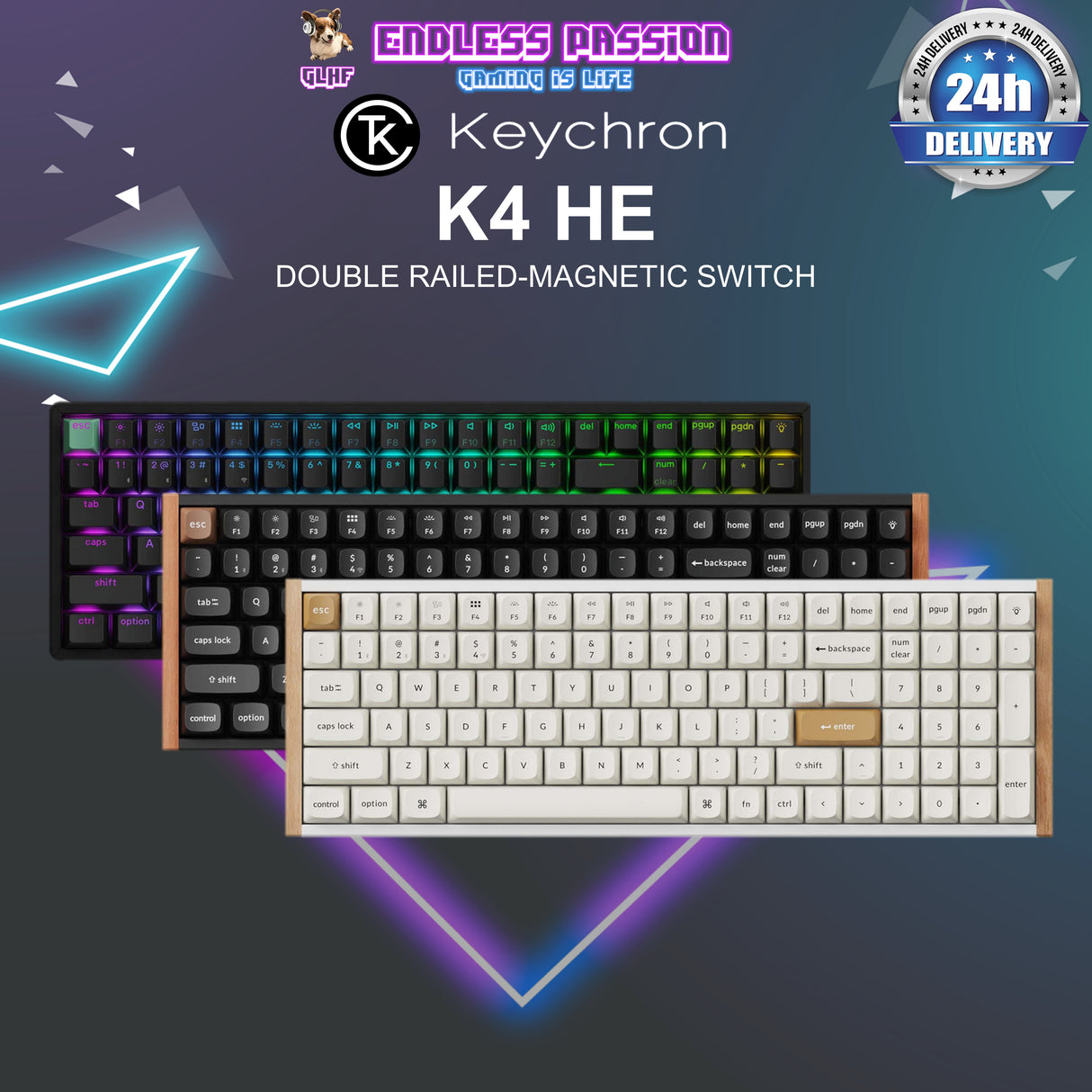

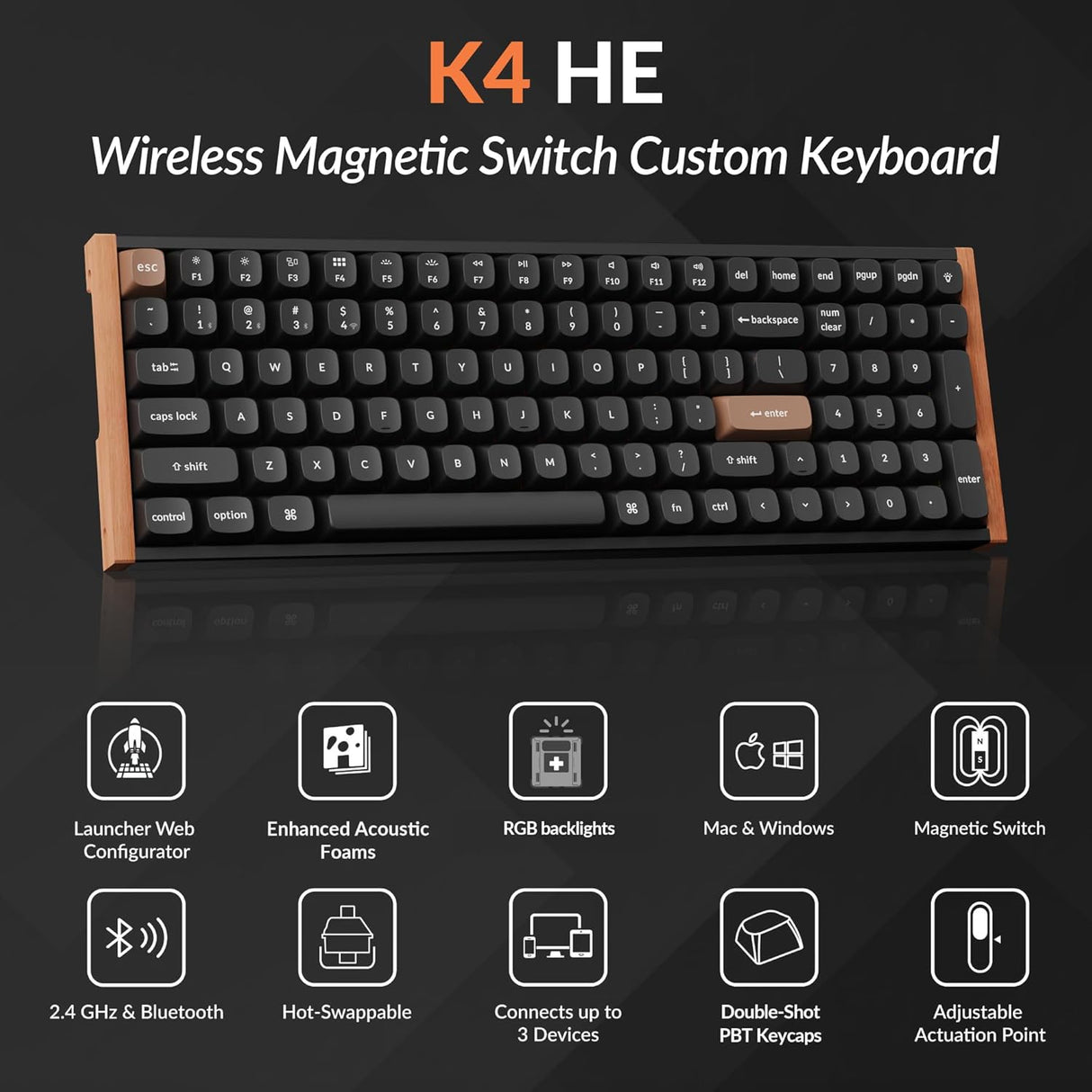

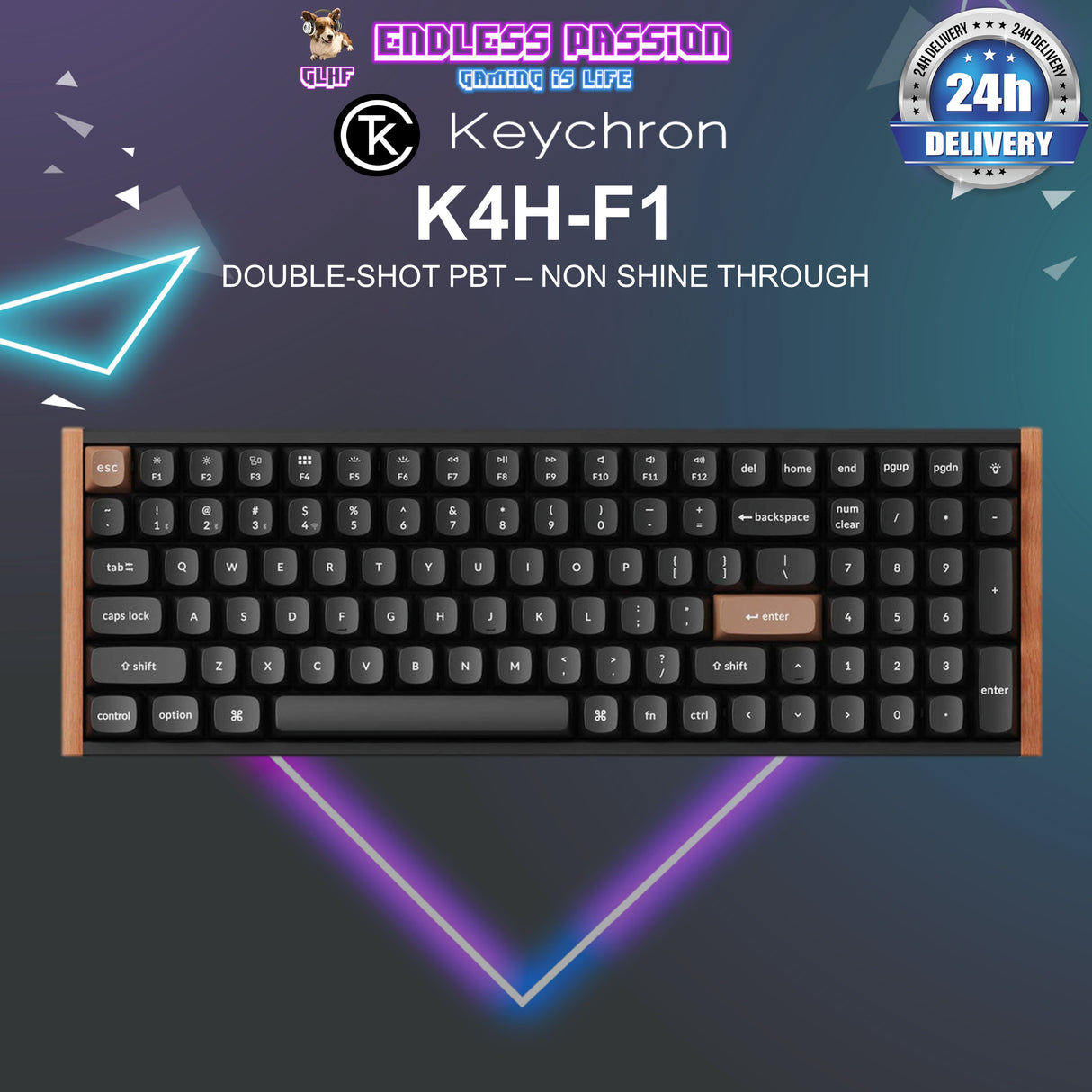

Keychron K4 HE - Wireless Magnetic Switch Custom Keyboard

$188.10 $209.00
Shipping calculated at checkout.

Keychron K4 HE
Forever change your gaming and typing experience with Keychron K4 HE, which brings a top-notch performance by merging the best of traditional mechanical keyboards with the advanced benefits of magnetic tech — in a clean, minimalistic design with natural rosewood accents. A fully customizable 96% layout wireless keyboard with magnetic switches — a breakthrough in switch technology, which—instead of physical contacts—uses magnetic sensors to measure actuation depth, putting you in total control over the response of each and every switch.



Product Features

- Satisfying Keyboard Acoustics

With pre-lubed switches, 3.5 mm thick EVA acoustic foam, EPDM foam, and a silicone pad inside the keyboard, the Keychron K4 HE delivers an exceptionally satisfying, soft, and thocky typing sound, enhancing your typing experience.

- An Epic Core Inside The Keyboard

Engineered with a powerful chip (MCU) with 256K flash and QMK open-source firmware to provide more flexibility for developers. The polling rate is 1000 Hz out of the box in Type-C wired mode and 2.4 GHz mode, which greatly helps when competitively gaming.

- Suitable for All Devices

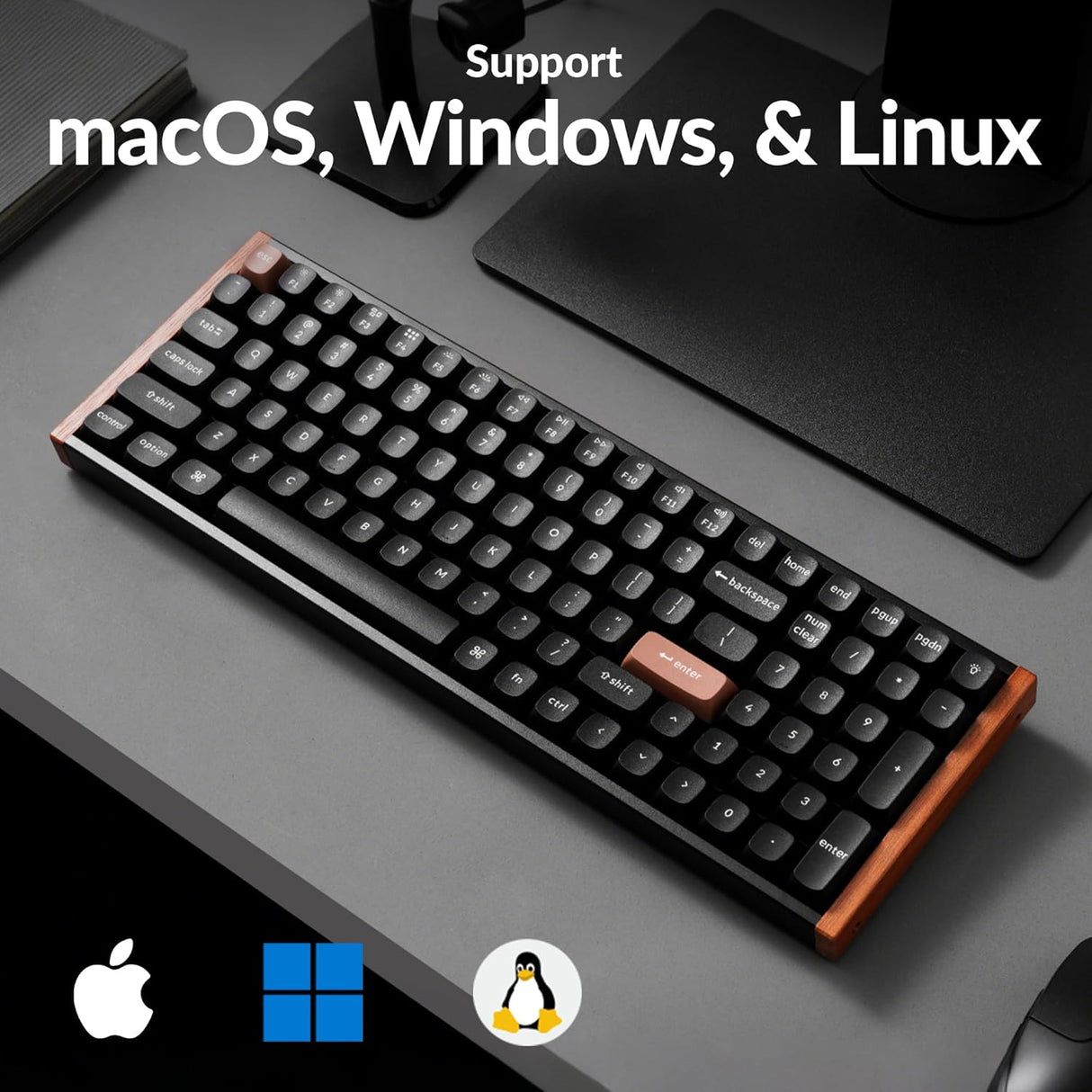

Built with the Mac users’ experience in mind while still retaining compatibility with Windows devices, the K4 HE comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

- Double-shot PBT Keycaps

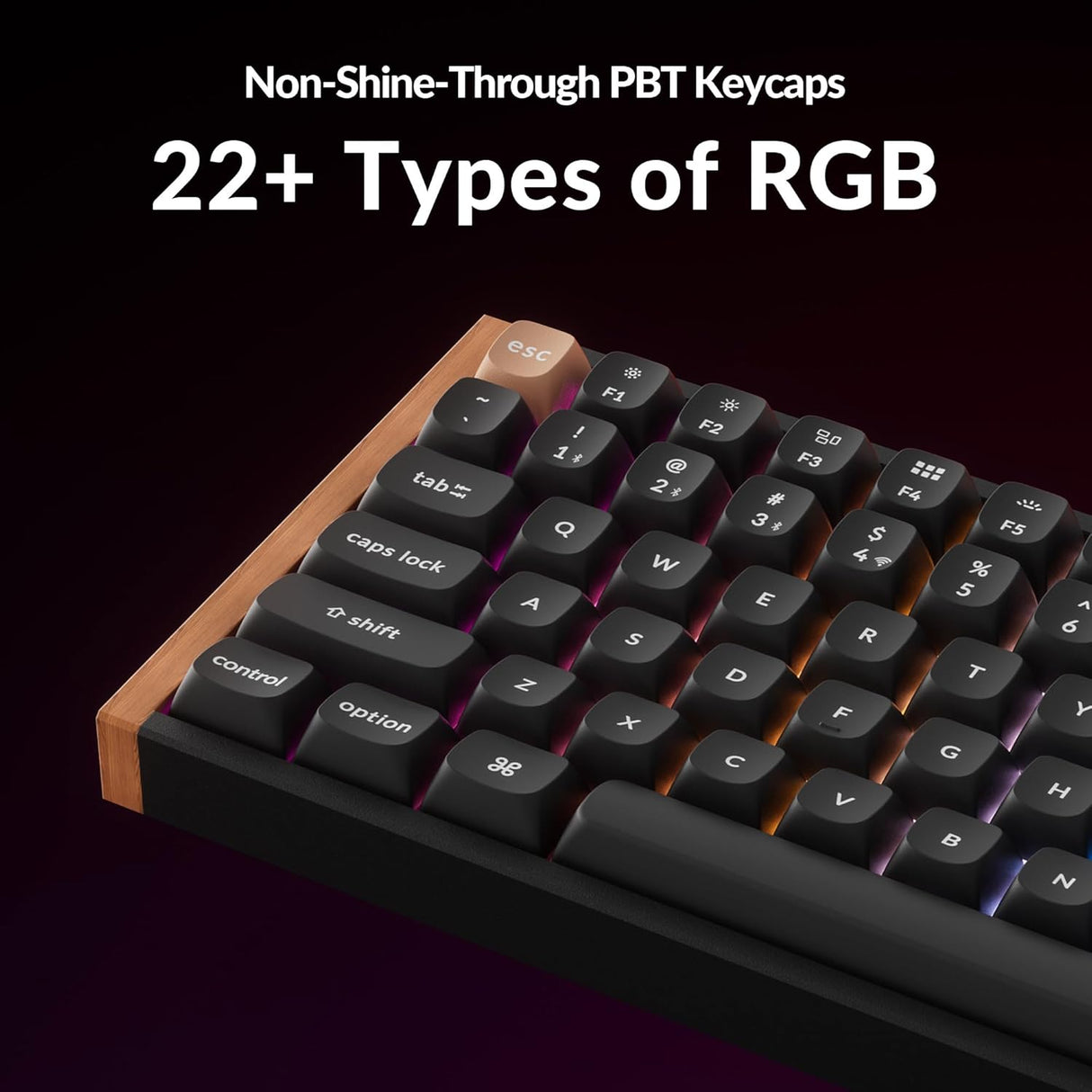

The PBT keycaps (shine-through cherry profile on the standard version, non-shine-through OSA profile for the special editions) will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

- Hot-swappable

Unlike mechanical switches, which depend on physical contact, Hall Effect magnetic switches use magnets to detect key presses. It is effortless to swap out the switch with compatible Hall Effect magnetic switches.

*The K4 HE is compatible with the double-rail magnetic switches sold on the Keychron website only.

Compatibility
  • Windows
  • macOS

What's In The Box
  • 1x Fully Assembled Keyboard
  • 1x Case
  • 1x PCB
  • 1x Aluminum Plate
  • 1x Sound Absorbing Foam
  • 1x EPDM Foam
  • 1x Bottom Case PET Film
  • 1x Silicone Bottom Pad
  • 6 Sets x Stabilizers
  • 1 Set x Keycaps (PBT Double-shot)
  • 1 Set x Magnetic Switches
  • 1x Type-A to Type-C Cable
  • 1x Type-A 2.4GHz Receiver
  • 1x Extension Adapter For Receiver
  • 1x Keycap & Switch Puller
  • 1x Screwdriver
  • 1x Hex Key

Warranty

1 Year By Convergent Systems (S) Pte. Ltd.

Delivery and Shipping
  • Non-Campaign Periods: Delivery within 1-3 business days.
  • Campaign Periods: Delivery within 3-5 business days.
  • Out of Stock: If any items are out of stock, we will contact you through WhatsApp so please remain contactable!

For any questions, please contact us through WhatsApp!

Specifications

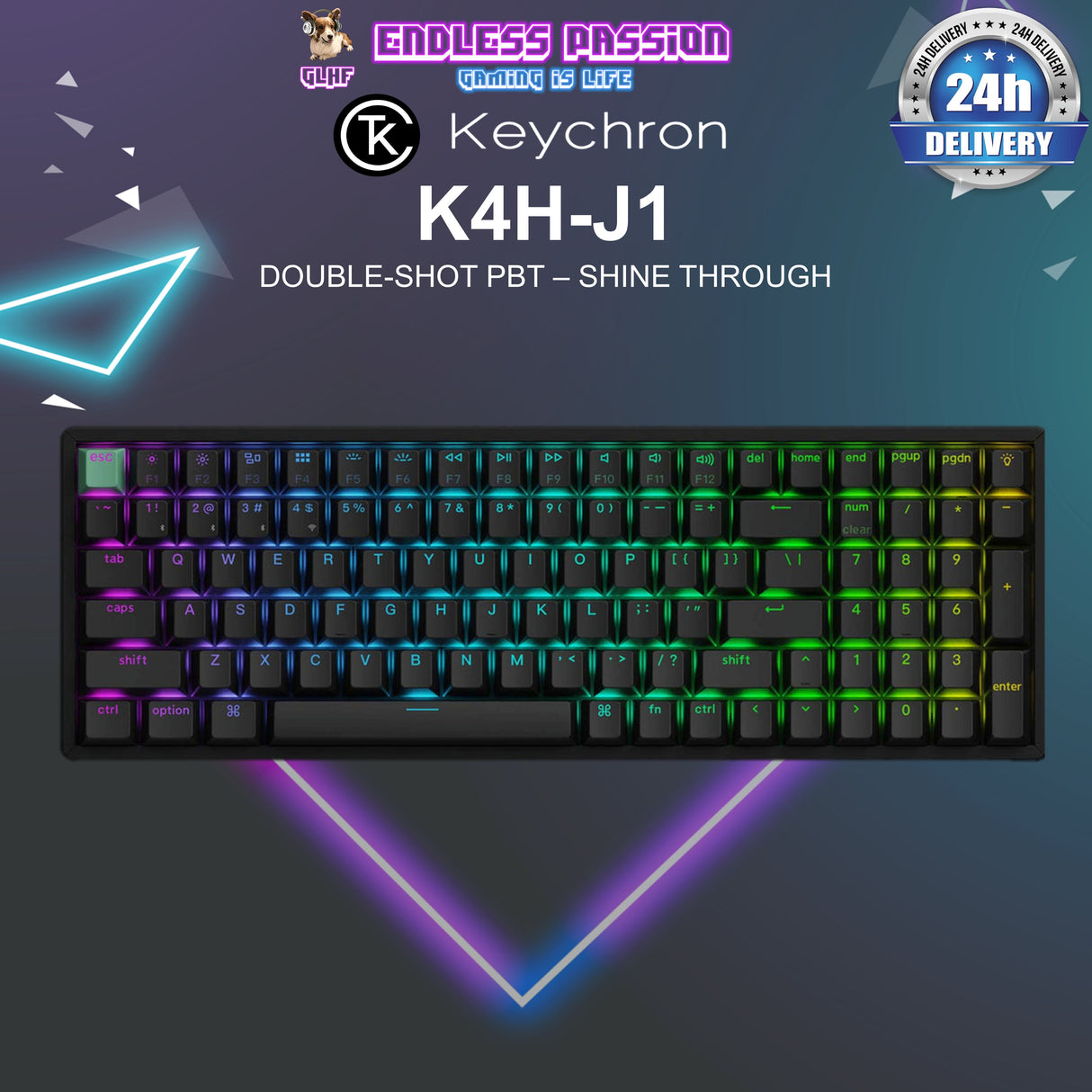

Standard Version:

Length: 373.2 mm
Width: 126.2 mm
Front Height: 31 mm (incl. keycap)
Back Height: 40.3 mm (incl. keycap)
Weight: Approx. 1090 g
Keycaps: Cherry Profile Double-shot keycaps, shine-through
Frame Material: Aluminum
Bottom Case Material: ABS Plastic

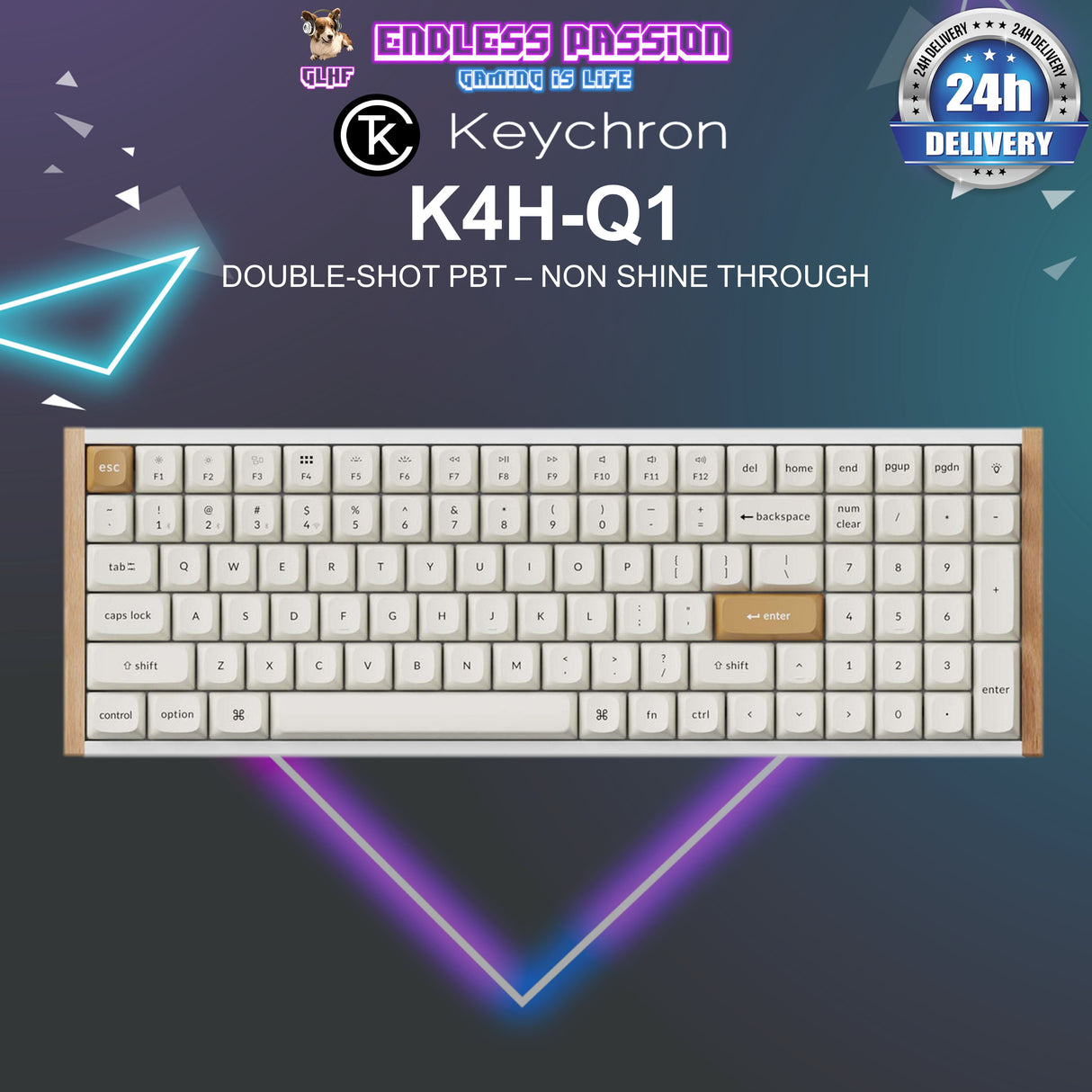

Special Edition:

Length: 377.1 mm
Width: 126.4 mm
Front Height: 31.7 mm (incl. keycap)
Back Height: 40.9 mm (incl. keycap)
Weight: Approx. 1066 g
Keycaps: OSA Double-shot keycaps, not shine-through
Frame Material: Aluminum + wood
Bottom Case Material: ABS Plastic


Stabilizer: Plate-Mounted Stabilizer
Switch: Gateron double-rail magnetic switch
MCU: ARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Angle: 5° / 8° / 11°
Backlight: North-facing RGB LED
Plate Material: Aluminum
Sensitivity: 0.1 mm
Rapid Trigger: Yes

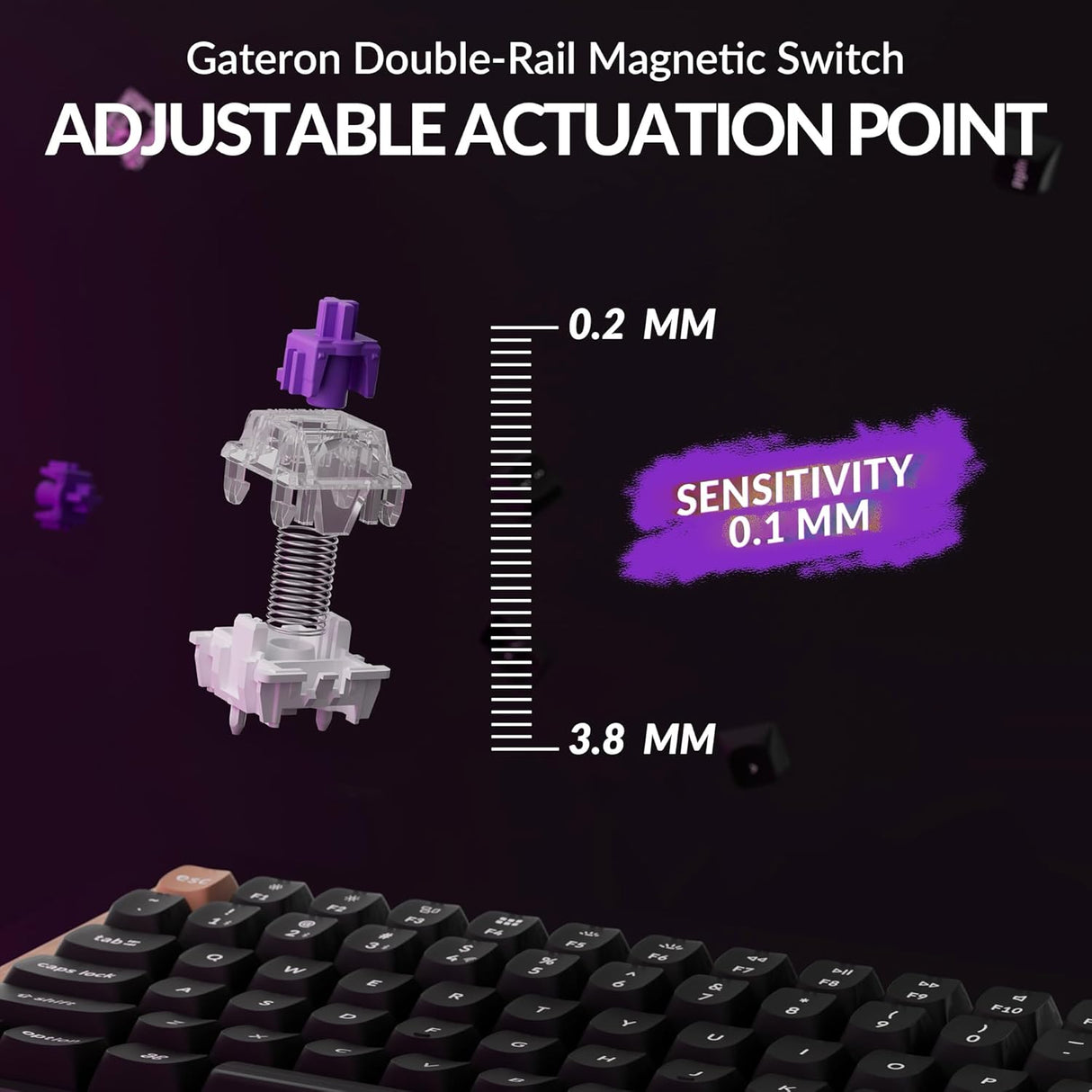

Adjustable Actuation Points: 0.2 - 3.8 mm

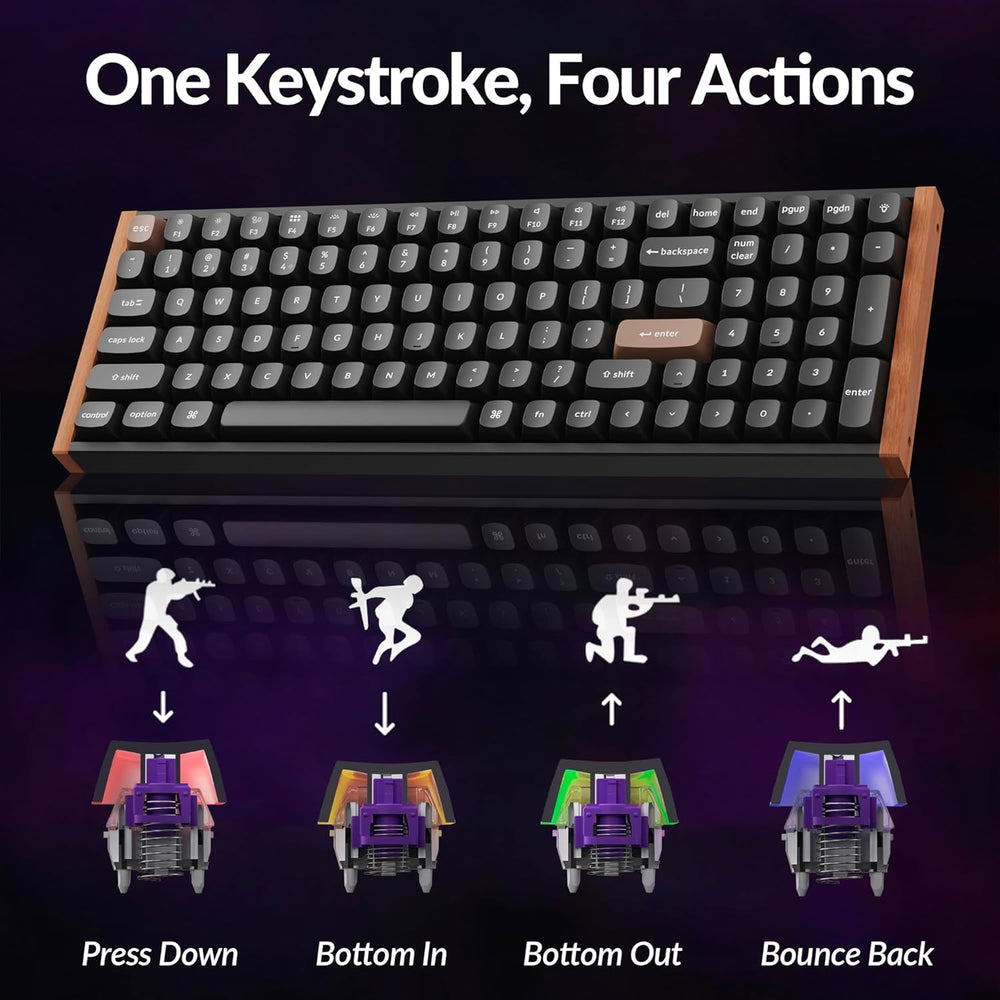

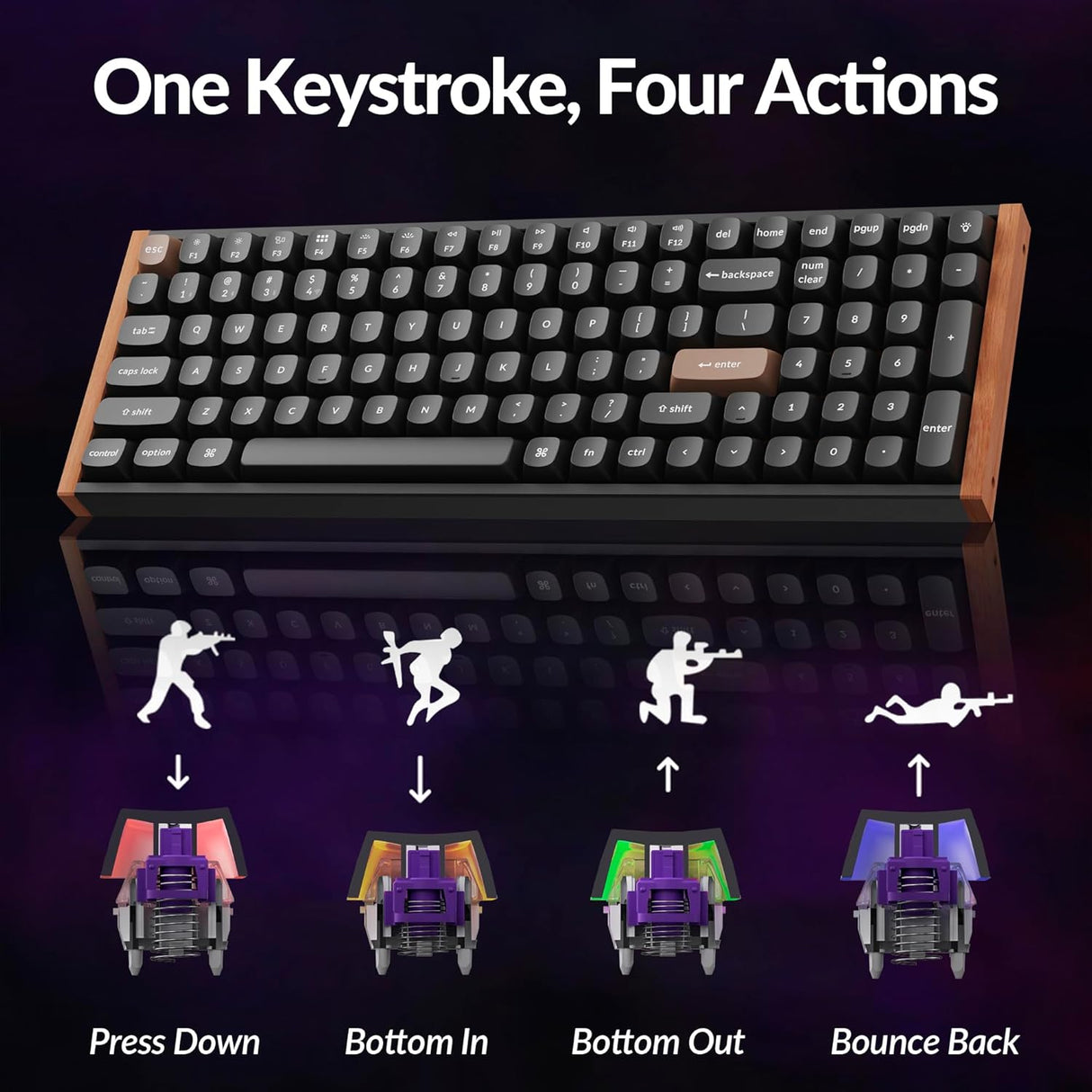

Dynamic Keystrokes: 4-in-1 action keys
Mount Style: Tray Mount Design
Cable: Type-A to Type-C cable
Connectivity: 2.4 GHz / Bluetooth / Type-C wired
Bluetooth Version: 5.2
Bluetooth Device Name: Keychron K4 HE
Battery: 4000 mAh Rechargeable li-polymer battery
Wireless Working Time (Backlit off): Up to 110 hours (Lab test results may vary based on actual use)
N-Key Rollover (NKRO): Yes for both wireless and wired modes
Hot-swappable Support: Yes, compatible with Gateron double-rail magnetic switch only.
Polling Rate: 1000 Hz (Wired and 2.4 GHz) / 125Hz (Bluetooth)
Operating Environment: -10 to 50℃
