ASUS RT-AX82U AX5400 Dual Band WiFi 6 (802.11ax) Gaming Router 0.75 kg

Model
RT-AX82U

Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

Product Segment
AX5400 ultimate AX performance : 574+4804 Mbps

WiFi Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps

Antenna
External antenna x 4

Transmit / Receive
2.4GHz 2x2
5GHz 4x4

Processor
1.5 GHz tri-core processor

Memory
256 MB Flash
512 MB RAM

Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency
2.4G Hz / 5 GHz

Operating Mode
Wireless router mode
Access point mode
Media bridge mode
Repeater mode
AiMesh node mode

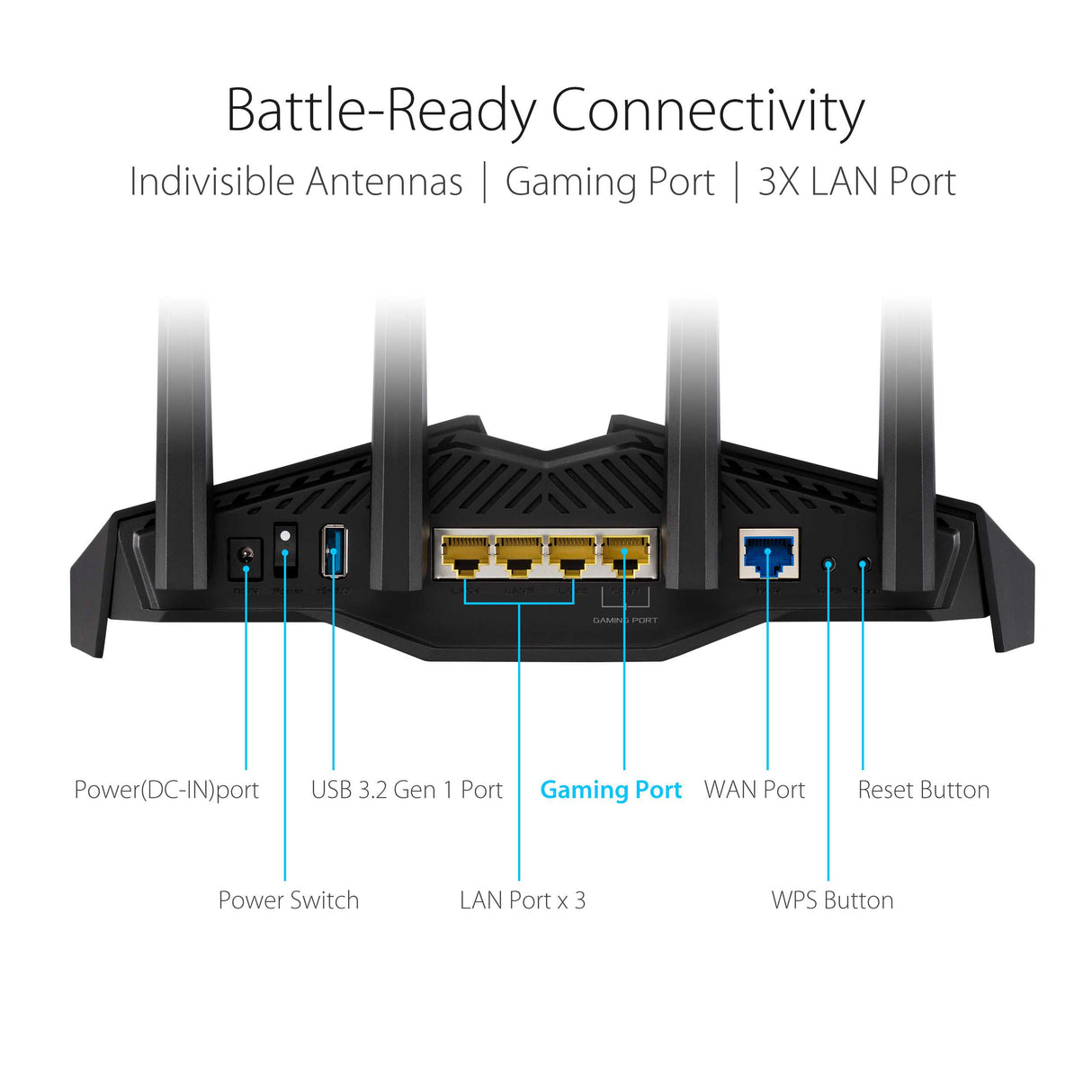

I/O Ports
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
USB 3.2 Gen 1 x 1

Buttons
WPS Button, Reset Button, Power Switch, LED on/off

LED Indicator
Power x 1
2.4G x 1
5G x 1
WAN x 1

Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 1.75 A current

Package Content
RT-AX82U Router
RJ-45 cable
Power adapter
Warranty card
Quick start guide

Product Weight (g)
740 g

Product Dimensions
275.5 x 184.4 x 165 mm (WxDxH)

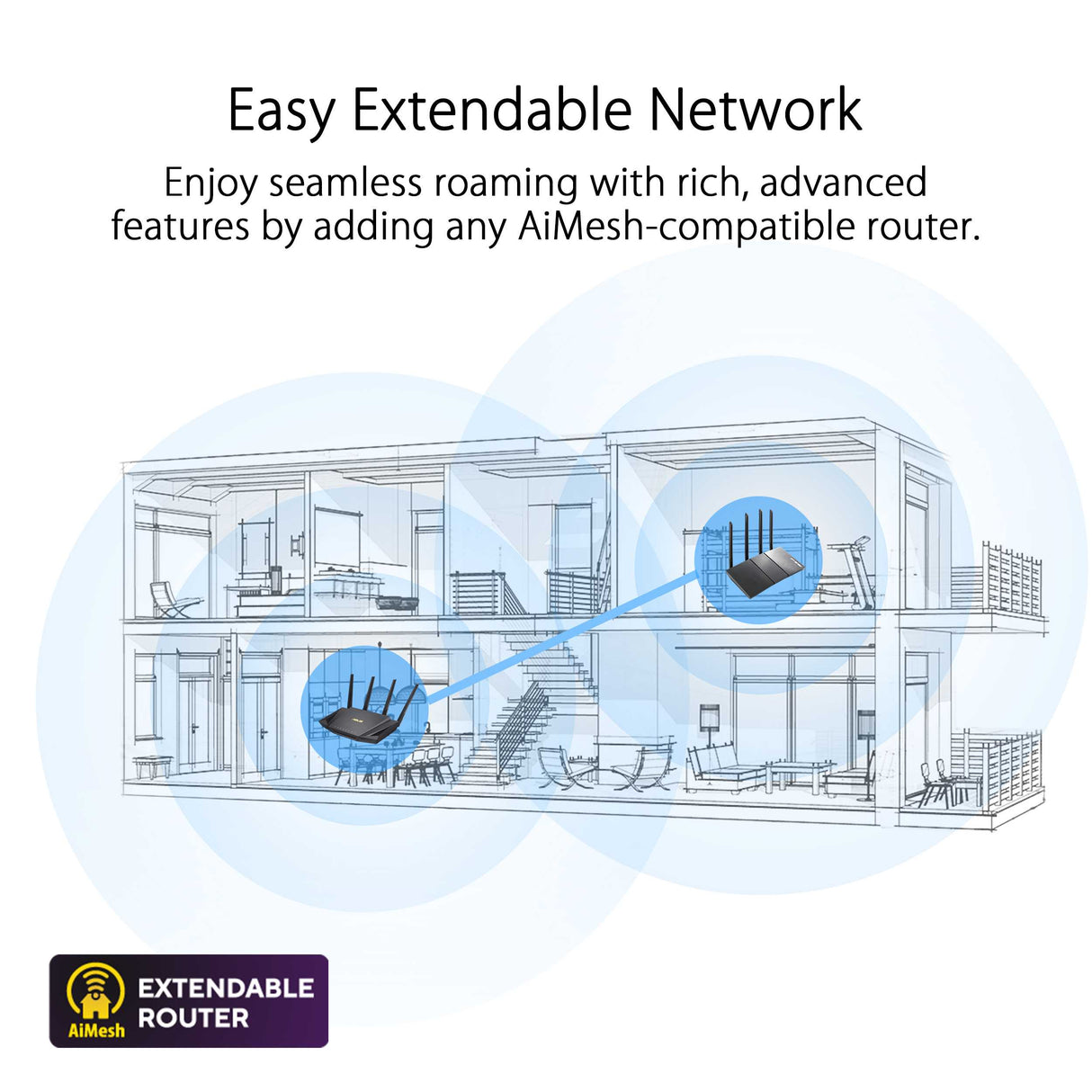

AiMesh
AiMesh
• Primary AiMesh Router
• AiMesh Node

Game
Game Boost / Acceleration
Mobile Game Mode
Gear Accelerator

Parental Control
"Allow you to block access to unwanted websites and apps."
Customized Internet Schedule

Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit

Security
AiProtection
WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support
WPS
SSH
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64

AiProtection
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

VPN
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP

Traffic Control
Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History

WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN
WAN Aggregation
3G / 4G LTE dongle
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, PPPoE relay

LAN
DHCP Server
IGMP Snooping
IPTV
LAN Link Aggregation
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)

Wireless
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
Universal Beamforming
Explicit Beamforming

USB application
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges

Administration
Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
