Asus ZenWiFi AX XD6 White AX5400 WiFi 6 Mesh 1.0 kg

Name: Asus ZenWiFi AX XD6 White AX5400 WiFi 6 Mesh
Brand: ASUS
SKU: ASUS NETWORKING XD6 (W-2-PK)
Price: 429.0 SGD
Availability: InStock

$429.00 ~~$529.00~~

Shipping calculated at checkout.

ASUS ZenWiFi XD6 AX5400 Whole-Home Dual-Band Mesh WiFi 6 System – Coverage up to 5,400 Sq. ft. / 4+ rooms, easy setup, life-time free network security & parental controls

Variant

Product variants

Product Features

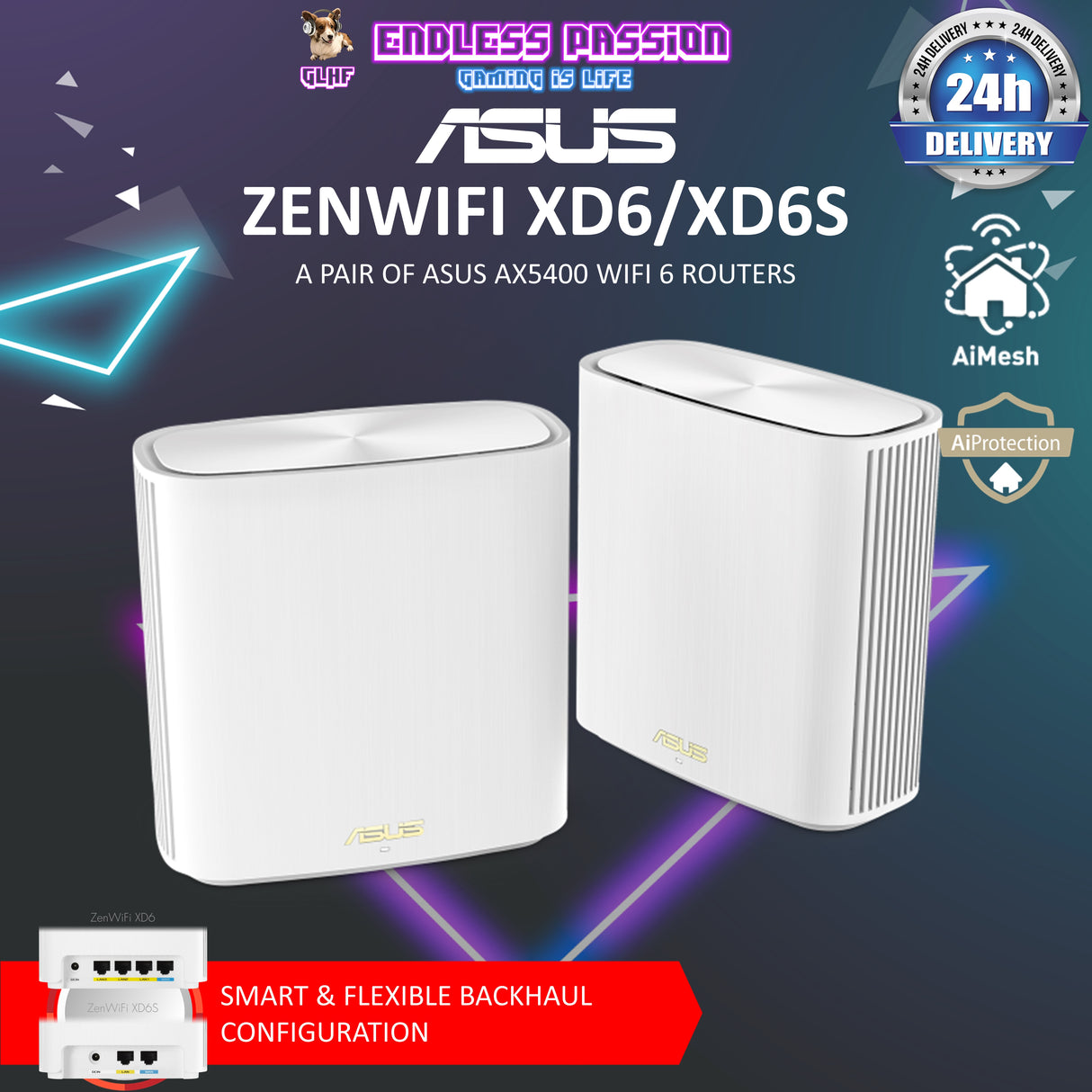

The ZenWiFi XD6 system consists of a pair of ASUS AX5400 WiFi 6 routers, featuring unique technologies that give you superfast, reliable and secure WiFi connections — inside or outside your home!

ASUS ZenWiFi XD6 gives you alternative backhaul options: Ethernet and WiFi. The router intelligently chooses the most reliable method for you based on connection quality. If you prefer, you can also manually choose the type of backhaul connection.

ZenWiFi XD6 puts your WiFi into top gear! With a total bandwidth of up to 5400 Mbps, it's up to 2.2X faster* than WiFi 5 routers

AiProtection Pro with Advanced Parental Controls is free for life. It gives you total peace of mind, and you can keep an eye on everything that's happening on your network via the mobile app.

Instant Guard gives you one-click secure internet access via ZenWiFi XD6 from anywhere in the world, thanks to its encrypted data-tunneling VPN technology. With ZenWiFi XD6, you can take your home network with you wherever you go — and say goodbye to web-based third-party VPNs!

ZenWiFi XD6 works perfectly with smart-home services- including Alexa skills.

What's In The Box

ZenWiFi XD6
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card

Warranty

3 Years Warranty By Avertek

Delivery and Shipping

Non-Campaign Periods: Delivery within 1-3 business days.
Campaign Periods: Delivery within 3-5 business days.
Out of Stock: If any items are out of stock, we will contact you through WhatsApp so please remain contactable!

For any questions, please contact us through WhatsApp!

Specifications

Model
ASUS ZenWiFi XD6 Series(XD6/XD6S)

Model Name
XD6 (W-2-PK)

Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

Product Segment
AX5400 ultimate AX performance : 574+4804 Mbps

AX technology
Yes

Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) (1024QAM) : up to 500 Mbps
WiFi 5 (802.11ac) (1024QAM) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps

Antenna
internal antenna x 6

Transmit/Receive
2.4GHz 2x2
5GHz 4x4

Processor
1.5 GHz tri-core processor

Memory
XD6
256 MB Flash
512 MB RAM

XD6S
128 MB Flash
512 MB RAM

Boosts speed
OFDMA (Orthogonal Frequency Division Multiple Access)
1024-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency
2.4 G Hz / 5 GHz

Ports
XD6: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3
XD6S: RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 1

Button
WPS Button, Reset Button

LED Indicator
Power x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2 A current

Package content
ZenWiFi XD6
RJ-45 cable
Power adapter
Warranty card
Quick start guide

ZenWiFi XD6S
RJ-45 cable
Power adapter
Wall mount kit
Warranty card
Quick start guide
*Wall mount kit may not be available in all regions/ countries. Please check with your retailer for exact offers.

Product Weight (g)
XD6: 435 g
XD6S: 425 g
Remark
Content may vary in different regions and packages.

AiMesh
AiMesh : Yes
Primary AiMesh router : Yes
AiMesh node : Yes
Router APP
ASUS Router APP : Yes

Game
Game Boost/acceleration : No
WTFast : No
Alexa
Support Alexa skill : Yes
IFTTT
Support IFTTT : No

AiProtection
AiProtection : AiProtection Pro
Router Security Assessment : Yes
Malicious site blocking : Yes
Two-Way IPS : Yes
Infected Device Prevention and Blocking : Yes

Parental Control
Parental Control : Yes
Parental Control Customized Internet schedule : Yes

Traffic Control
Adaptive QoS : Yes
Bandwidth Monitor : Yes
Bandwidth limiter : Yes
Maximum Bandwidth limiter rule : 32
Traditional QoS : Yes
Maximum Traditional QoS rule : 32
Traffic Monitor : Yes
Real-time traffic monitor : Yes
Wired Traffic Monitor : Yes
Wireless Traffic Monitor : Yes
Traffic Analyzer : Yes
Website history : Yes

Wireless
IPv6 : Yes
MU-MIMO : Yes
UTF-8 SSID : Yes
Guest Network : Yes
Maximum Guest Network rule : 9
Guest Network Connection time limit : Yes
Guest Network Encryption : WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS : Yes
Wi-Fi MAC address filter : Yes
Maximum MAC filters : 64
Wireless scheduler : Yes
Airtime fairness : Yes
RADIUS Server : No
Universal beamforming : Yes
Explicit beamforming : Yes

WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN : Yes
WAN Aggregation : No
3G/4G LTE dongle : No
Android tethering : No
Port forwarding : Yes
Maximum port forwarding rule : 64
Port triggering : Yes
DMZ : Yes
DDNS : Yes
Let's Encrypt : Yes

LAN
DHCP Server : Yes
IGMP snooping : Yes
IPTV : Yes
LAN Link Aggregation : No
Manually assign IP address : Yes
Maximum manually assign IP address rule : 64

VPN
VPN Client L2PT : Yes
VPN Client OVPN : Yes
VPN Client PPTP : Yes
VPN Server IPSec : Yes
VPN Server OVPN : Yes
VPN Server PPTP : Yes
VPN Fusion : No

USB application
HDD hibernation : No
Safely Remove disk : No
AiCloud : No
Download master : No
AiDisk : No
Media Server : No
Time Machine : No
Samba Server : No
FTP Server : No
Shared Folder privileges : No

Administration
Operating mode : Wireless router mode
Range extender mode
Access point mode
Media bridge mode
Operating system : ASUSWRT
Free OS upgrade : Yes
Firewall : Yes
Maximum Firewall keyword filter : 64
Maximum Firewall network service filter : 32
Maximum Firewall URL filter : 64
Wake on LAN (WOL) : Yes
SSH : Yes
Configuration backup and restore : Yes
Diagnosis tools : Yes
Feedback system : Yes
System log : Yes

Product Dimensions with antennas (L*W*H) mm
126.4 x 59.05 x 129.7 mm
