1 6
Fanatec

Fanatec Gran Turismo® DD Pro - 5Nm - CRD-9020007-US 5.0 kg

$979.00
Shipping calculated at checkout.

High-performance direct drive wheel base, a licensed Gran Turismo steering wheel and a set of pedals. It features the upgraded QR2 quick release system for a more secure and precise connection.

Product Features

Gran Turismo DD Pro Wheel Base:

  • The official Direct Drive Wheel for Gran Turismo

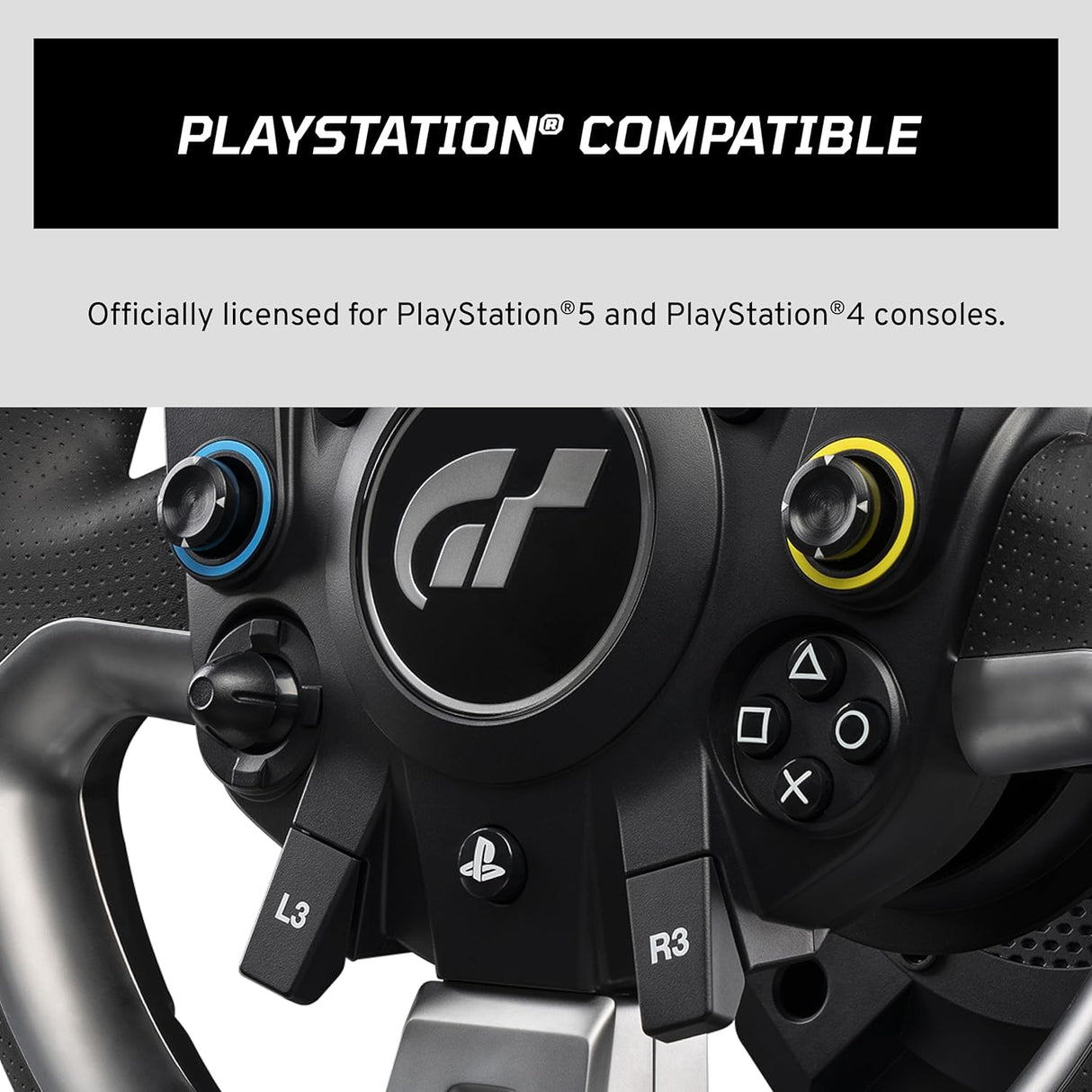

  • Officially licensed for PS5® and PS4® consoles

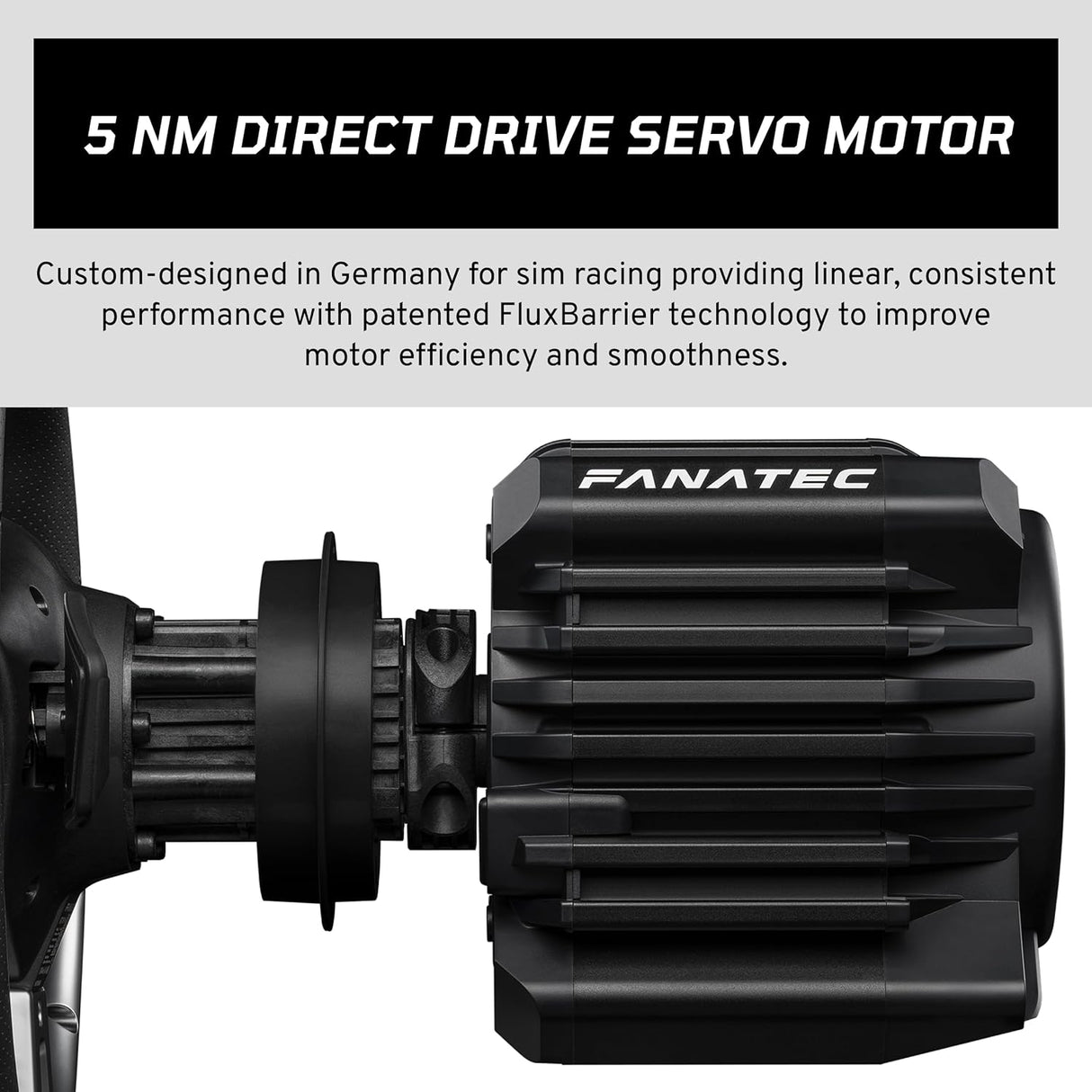

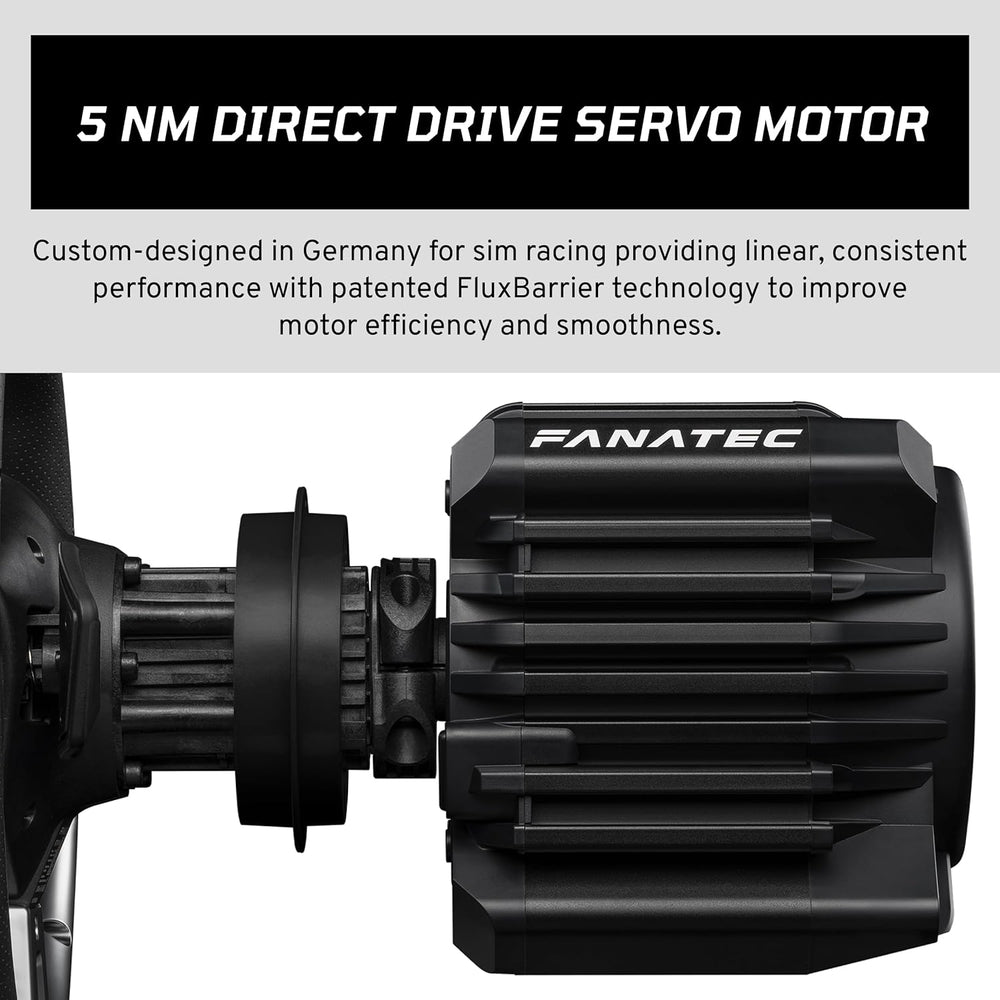

  • Direct-Drive system delivers instant, detailed force feedback
  • Linear, consistent performance (5 Nm peak torque)
  • Optional Boost Kit 180 (sold separately) unlocks maximum strength (8 Nm peak torque)
  • Patented, exclusive FluxBarrier technology optimises motor efficiency and smoothness
  • Full Fanatec SDK support ensures compatibility out of the box for all major racing games
  • Standard Tuning Menu allows beginners to get started quickly without having to worry about settings
  • Advanced Tuning Menu allows enthusiasts to fine-tune the force feedback characteristics to suit their driving preferences
  • High-resolution (contactless) Hall-position-sensor, same as Podium Series
  • Steering axis made from carbon fibre-enhanced composite

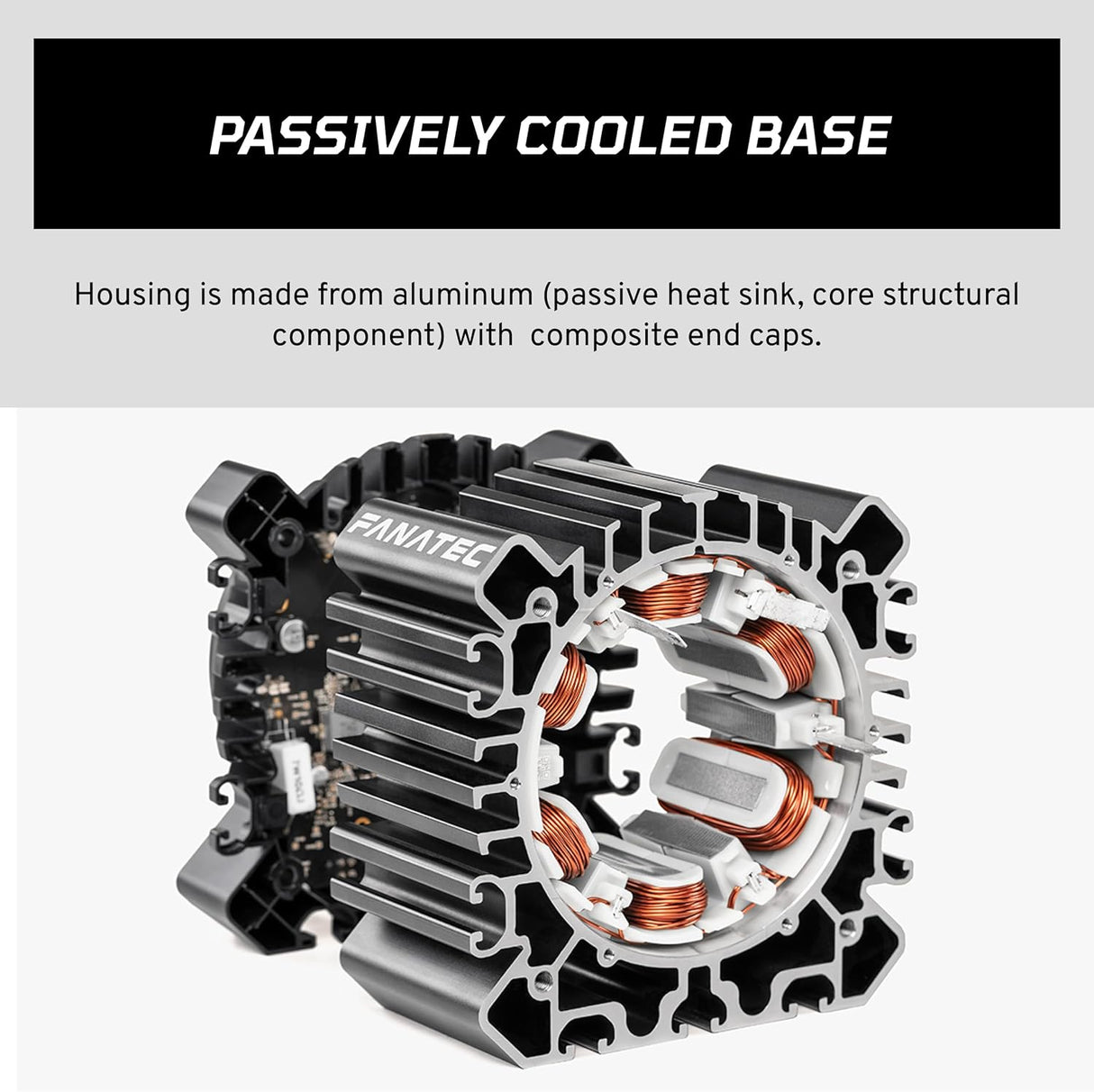

  • Fanless: wheel base housing is made from aluminium (passive heat sink, core structural component) with composite end caps
  • Slip ring system (life-tested for thousands of hours) provides cable-free delivery of power and data between steering wheel and wheel base
  • QR2 quick release system
  • T-nut rail system on sides and bottom for easily adjustable hard-mounting
  • Table clamp included, supports 5 to 60 mm table thickness
  • Ports:
  • Front-mounted threaded inserts for Fanatec accessories (e.g. ClubSport Static Shifter Paddles, available separately). Not intended for front-mounting the wheel base to a sim racing chassis/cockpit.

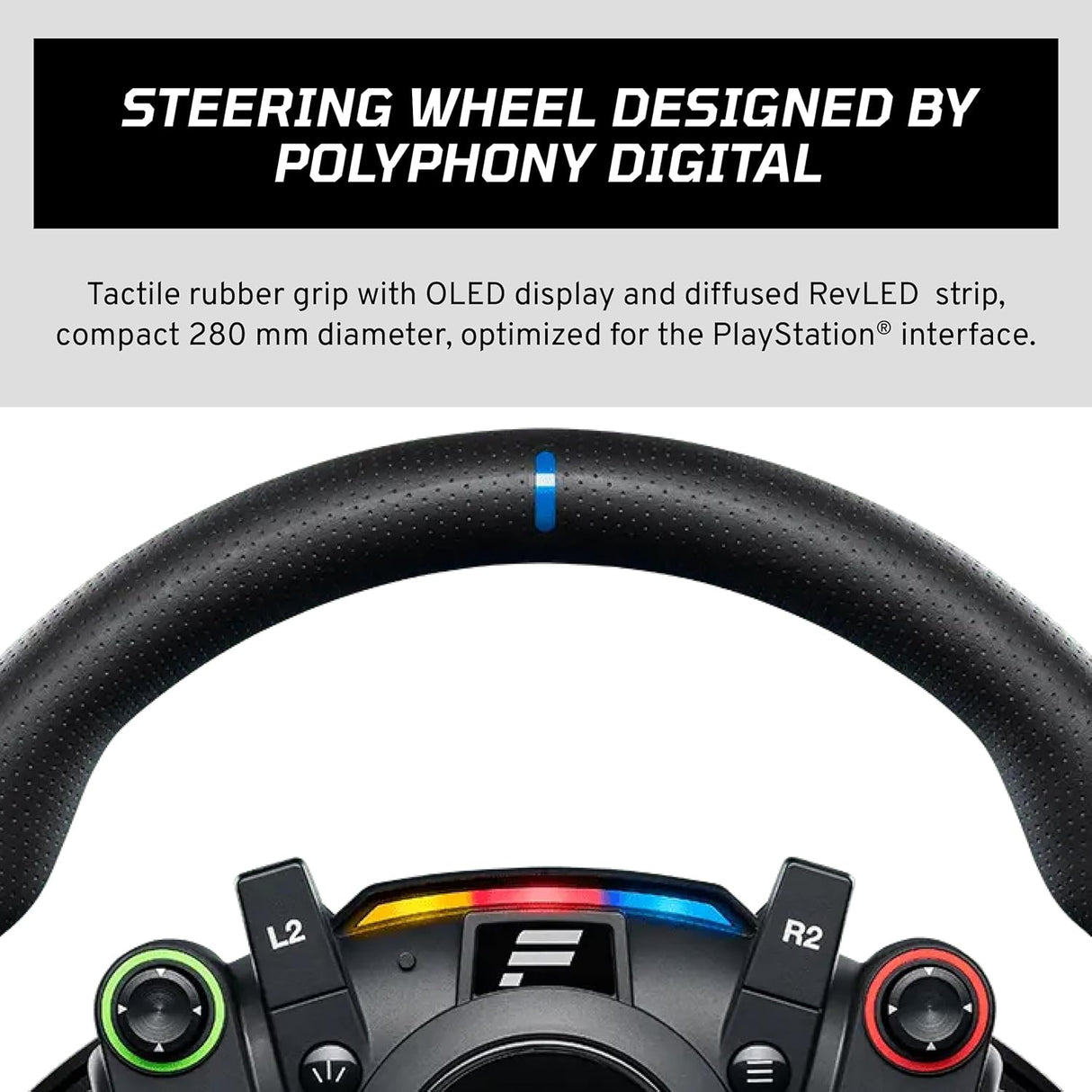

Steering wheel for Gran Turismo DD Pro:

  • Designed by Polyphony Digital
  • Tactile rubber grip with blue centre stripe
  • Compact 280 mm diameter and light weight for crisp response
  • Diffused RevLED strip (yellow, red, and blue LEDs)
  • White OLED display for Tuning Menu access and telemetry output (where supported)
  • 5-way directional stick for menu navigation

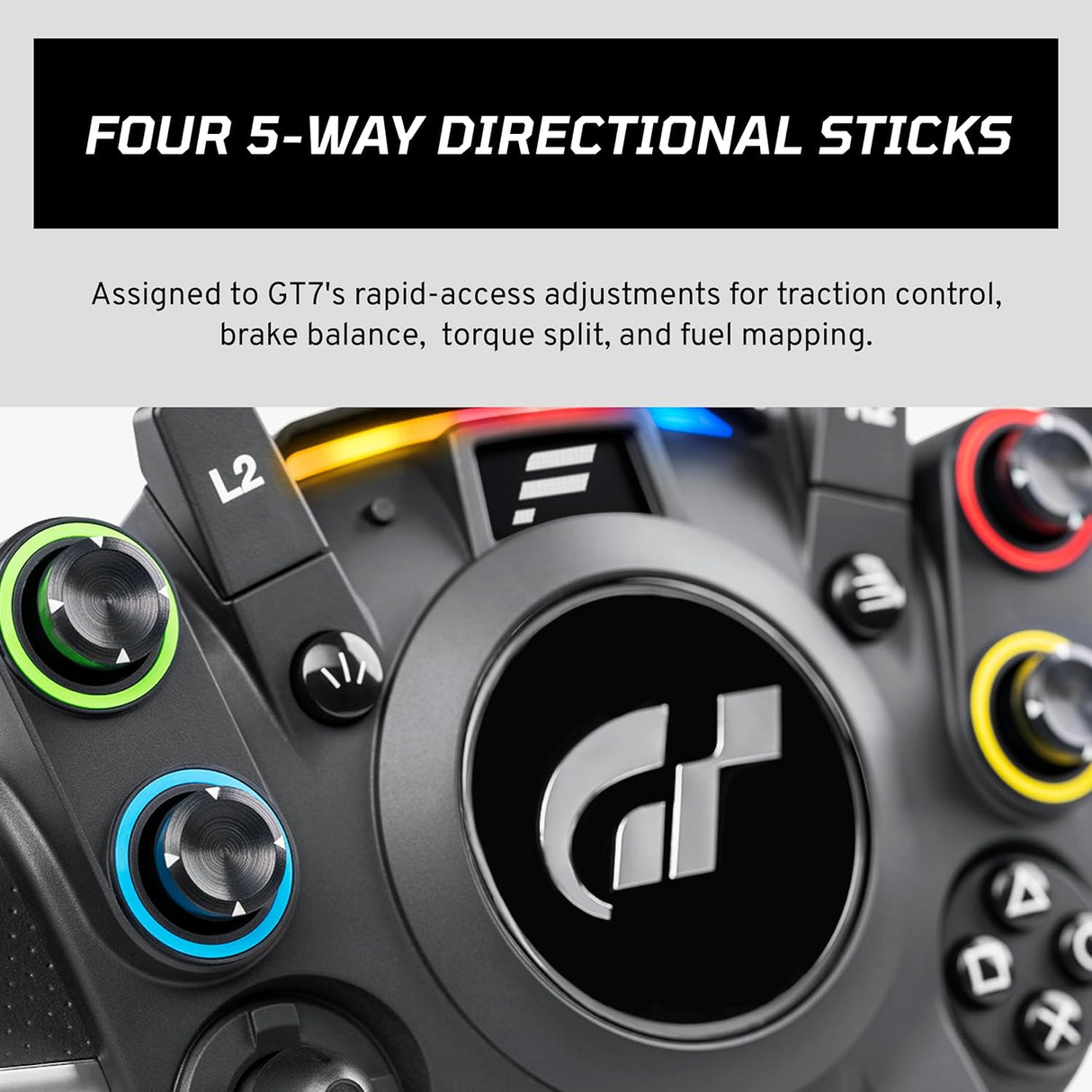

  • Four additional 5-way directional sticks
  • Ergonomic shifter paddles
  • 11 buttons optimised for the PlayStation® interface
  • Fiberglass-reinforced plastic construction
  • QR2 Lite Wheel-Side preinstalled

Pedals for Gran Turismo DD Pro:

  • Two-pedal set (throttle and brake), upgradeable to three pedals (upgrade kits sold separately)
  • All-metal construction (excluding pedal faces). Pedals are made from heavy steel, which helps to prevent the set from sliding on the floor (if not hard-mounted to a rig)
  • Optional anodised aluminium pedal plates (CSL Pedals Tuning Kit, sold separately)
  • Contactless Hall sensors (12-bit) on both brake and throttle for high precision and durability
  • Brake pedal spring is stiffer than throttle pedal spring, PU foam damper adds additional resistance for progressive braking feel
  • Upgrade to a three-pedal configuration with Clutch Kit or Load Cell Kit (sold separately)
  • Pedal position can be adjusted sideways along heel rest
  • Height-adjustable pedal faces
  • Modular design means inverted mounting to a rig is possible
  • Vertical rear plates allow pedals to be easily braced against a wall or other vertical surface
  • Pearl chrome plating on pedal bases and arms
  • Black powder coating on heel rest
  • Pedals connect directly to Gran Turismo DD Pro Wheel Base

What's In The Box
  • Gran Turismo DD Pro direct drive wheel base
  • QR2 Lite Base-Side (Type-C) (preinstalled)
  • QR2 Lite Wheel-Side (preinstalled)
  • Pedals for Gran Turismo DD Pro (two-pedal set)
  • Table clamp
  • 4x T-nuts for rail mount system
  • USB cable (Type-C to Type-A)
  • RJ12 connection cable for pedals
  • Pedal spacers for hard-mounting
  • Torx Key
  • Power Supply (5 Nm)
  • Quick Guide

Warranty

3 Years by Endless Passion

Delivery and Shipping
  • Non-Campaign Periods: Delivery within 1-3 business days.
  • Campaign Periods: Delivery within 3-5 business days.
  • Out of Stock: If any items are out of stock, we will contact you through WhatsApp so please remain contactable!

For any questions, please contact us through WhatsApp!

Specifications

1. Wheel Base (Gran Turismo DD Pro Wheel Base):

Type: Direct Drive system. This means the steering wheel is directly mounted to the motor shaft, providing instant and detailed force feedback without the need for belts or gears, eliminating lag and dampening effects.

Peak Torque: 5 Nm (Newton meters) out of the box.

Upgradeable Torque: Can be upgraded to 8 Nm with the optional Boost Kit 180 (sold separately).

Cooling: Passive cooling (fanless), with the extruded and CNC-machined aluminum casing acting as a heatsink and structural chassis.

Force Feedback Technology: Features Fanatec's patented FluxBarrier technology for optimized motor efficiency and smoothness.

Sensor: High-resolution (contactless) Hall-position-sensor, similar to the Podium Series.

Steering Axis: Made from carbon fibre-enhanced composite for optimal responsiveness and acceleration.

Quick Release System: Pre-installed with QR2 Lite Base-Side (Type-C), offering a robust and flex-free connection for enhanced force feedback detail.

Connectivity:

USB-C to console/PC

Power supply port

Shifter 1 port

Shifter 2 port (sequential only)

Pedals port

Handbrake port

Mounting: T-nut rail system on sides and bottom for hard-mounting. Includes a table clamp (supports 5 to 60 mm table thickness).

Tuning Menu: Standard Tuning Menu for quick setup, Advanced Tuning Menu for fine-tuning force feedback characteristics.

2. Steering Wheel (Gran Turismo Steering Wheel):

Diameter: 280 mm (round shape), suitable for a variety of vehicles.

Material: Tactile rubber grip. Fiberglass-reinforced plastic construction.

Quick Release System: Pre-installed with QR2 Lite Wheel-Side.

Controls:

White OLED display

Diffused RevLED strip

Four unique 5-way directional sticks

PlayStation®-specific inputs (buttons)

Ergonomic paddle shifters

Design: Officially designed by Polyphony Digital specifically for Gran Turismo.

3. Pedals (Pedals for Gran Turismo DD Pro):

Configuration: Two-pedal set (throttle and brake).

Construction: All-metal construction (heavy steel, excluding pedal faces) for durability and stability.

Sensors: Contactless Hall sensors (12-bit) on both brake and throttle for high precision and durability.

Brake Pedal: Stiffer spring than the throttle, with a PU foam damper for a progressive and realistic feel.

Adjustability:

Pedal position can be adjusted sideways along the heel rest.

Height-adjustable pedal faces.

Upgradeability (Sold Separately):

CSL Pedals Clutch Kit: Adds a third pedal (clutch).

CSL Pedals Load Cell Kit: Adds a third pedal, and upgrades the brake and main electronics for even greater precision.

CSL Pedals Tuning Kit: Optional anodized aluminum pedal plates.

Connectivity: Connects directly to the Gran Turismo DD Pro Wheel Base.

4. Compatibility:

Platforms: Officially licensed for PlayStation®5 and PlayStation®4 consoles. Fully compatible with PC on all major racing games.

Steering Wheels: Compatible with all Fanatec Steering Wheels that use a QR2 (QR2 Lite, QR2, or QR2 Pro) quick release system.

Pedals/Peripherals: Compatible with all Fanatec pedals, shifters, and handbrakes
