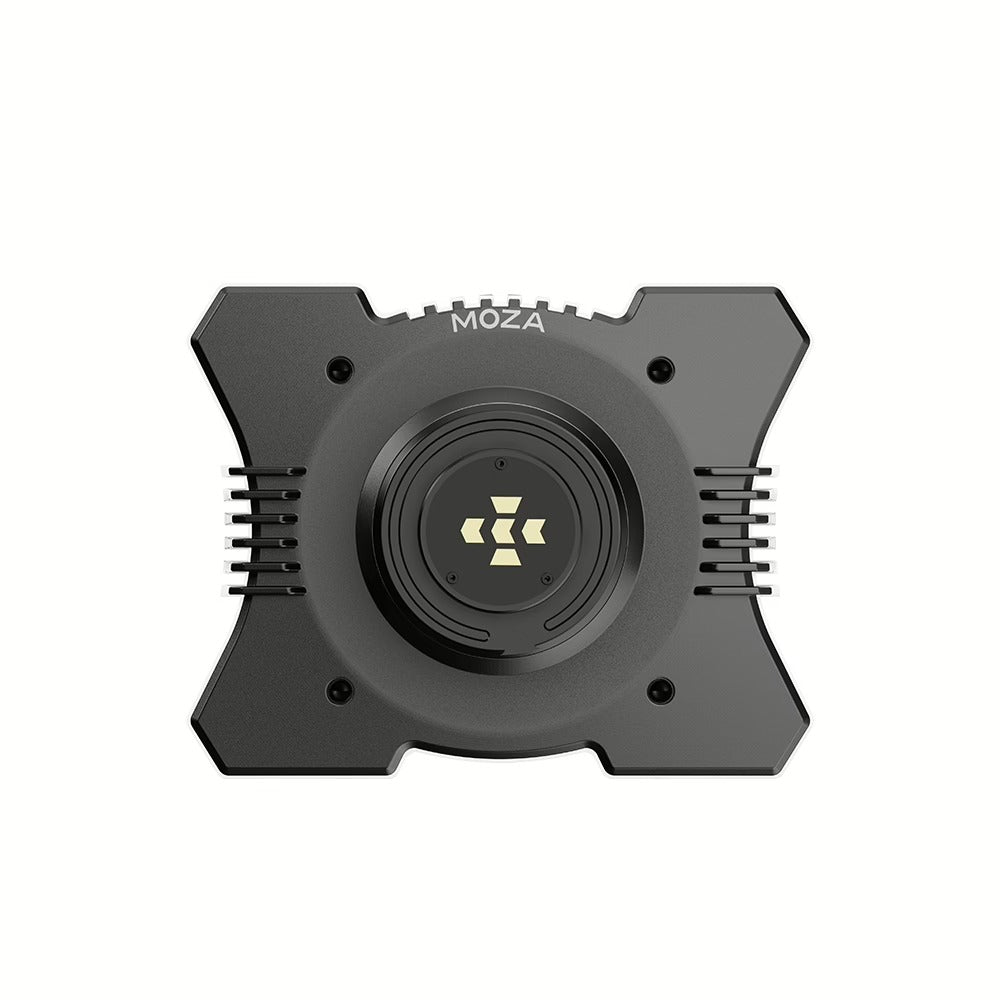

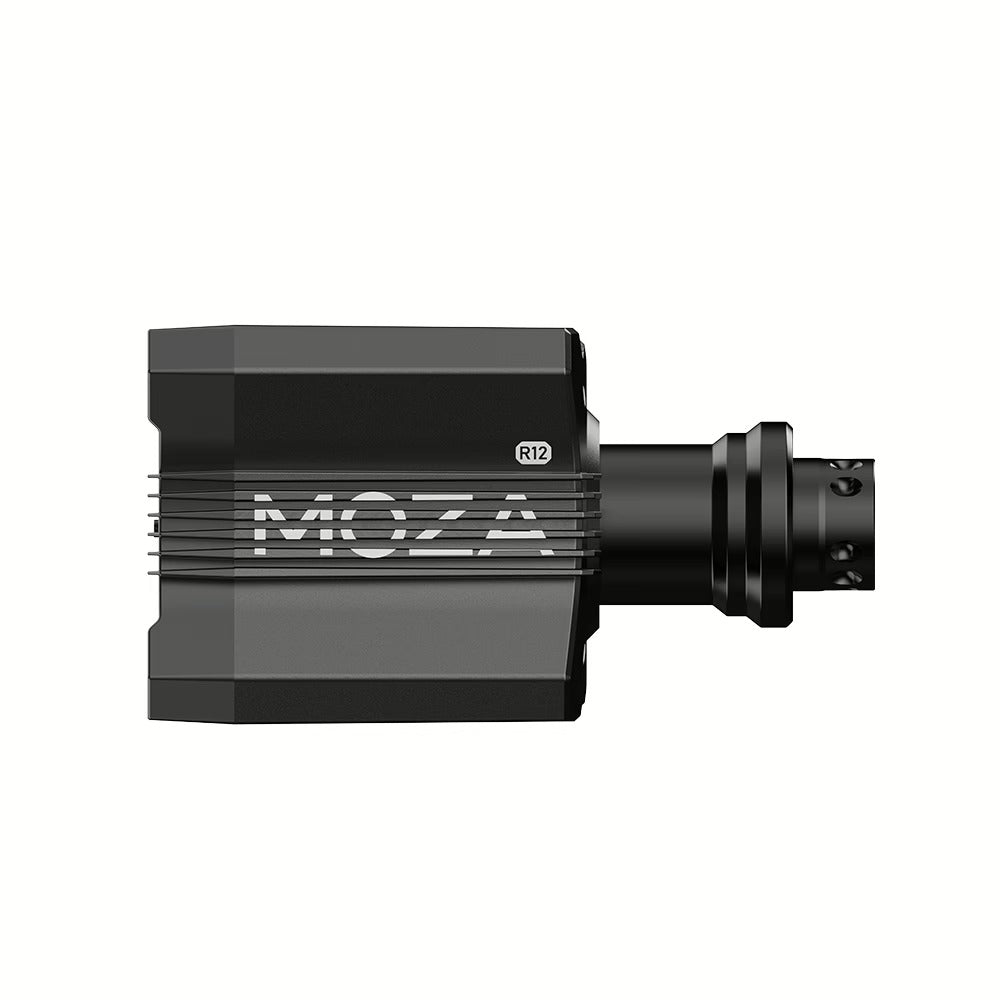

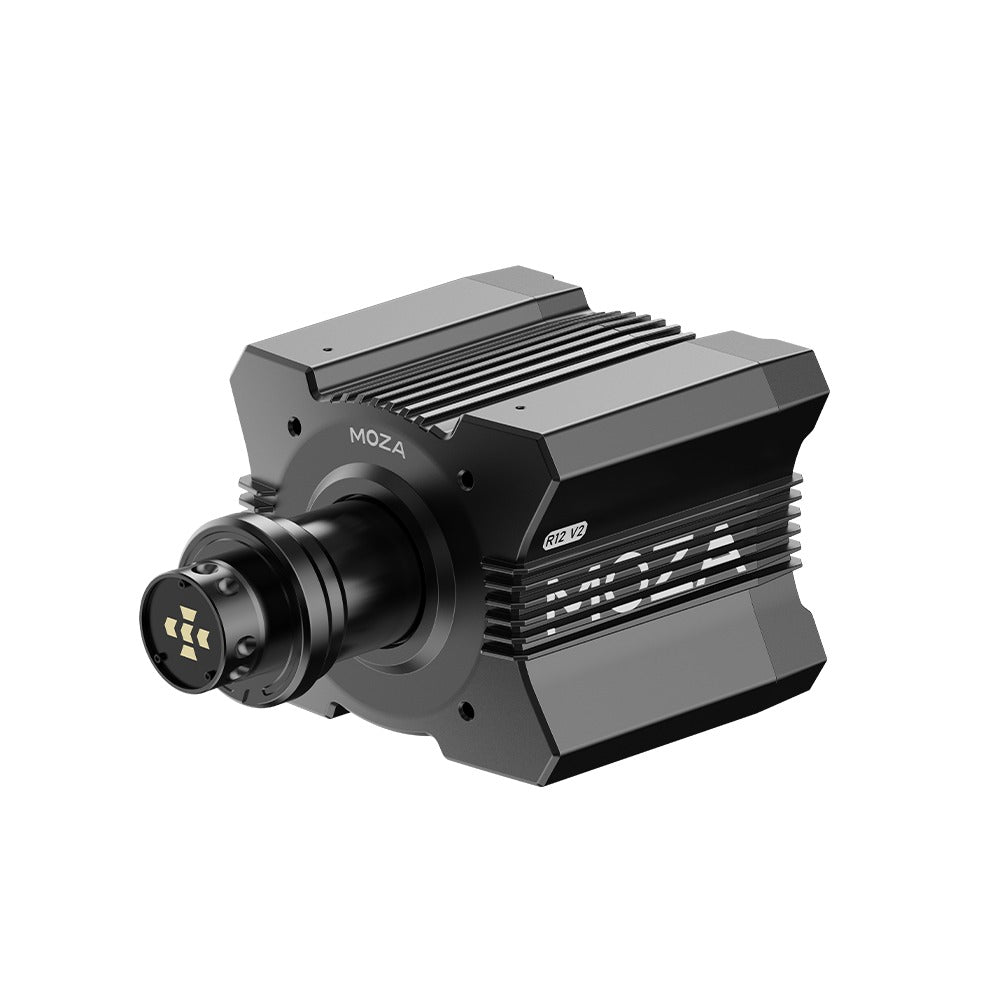

MOZA R12 Wheel Base 7.5 kg

$854.05 $949.00
Shipping calculated at checkout.

Introducing the MOZA R12 sim racing wheelbase, the latest addition to our collection. With well-balanced specs, it offers a remarkable combination of power and performance. Experience the impressive 12 N·m of torque delivered by the direct drive servo motor, ensuring a dynamic racing experience. The lightweight design enhances agility and responsiveness on the track. Equipped with a new generation FFB filtering algorithm, it delivers precise and immersive force feedback. Crafted from aviation-grade aluminum, it guarantees durability and a sleek aesthetic. The industrial conductive slip ring enables smooth and uninterrupted operation. Benefit from ultra-low FFB latency and steering response, allowing for lightning-fast reactions. The intelligent temperature control system ensures optimal performance during intense racing sessions. With hand-off protection, you can race with peace of mind. Take control with the MOZA Pit House Control Software and enjoy the convenience of cloud-based mobile APP control.



Product Features

12Nm DD Power
The 12 Nm servo direct drive system is tailor-made for simulating race cars, delivering a stable and realistic torque output of 12 Nm. It flawlessly replicates the steering force found in road and race cars, providing detailed and immersive feedback from the virtual vehicle and track surface directly to your hands.

Direct Drive Servo Motor
Slanted-pole Design
The R12 motor incorporates cutting-edge technology derived from the R21 base, utilizing a unique slanted-pole design. The rotor is intelligently segmented into three sections with precisely calculated angles, resulting in a revolutionary motor design that significantly reduces cogging torque, torque ripple, electromagnetic vibration, and noise levels compared to conventional motors. With its innovative design, the R12 motor runs seamlessly and quietly, offering unparalleled smoothness and minimal noise and vibration during operation.

The Maximum & Minimum Design Philosophy
The R12 DD base is designed with a high-slot fill rate, utilizing high-permeability magnetic cores and high-strength neodymium iron boron magnets to achieve high energy and low current density characteristics. With its compact body and low power consumption, it delivers maximum torque output, significantly enhancing convenience and temperature control performance.

Ultra-low Torque Ripple
The motor in the R12 DD base utilizes a 18-slot, 16-pole high-slot design, which features the highest number of poles in its class. This design results in ultra-low torque ripple and exceptional shock absorption performance, delivering a smooth and seamless steering experience.

Wide High-torque Speed Range
The R12 DD base utilizes a low back-electromotive force design, which allows for a broad speed range even during high-torque operation. This feature enables high torque output at high speeds and eliminates torque dropouts when quickly correcting direction, ensuring a smooth and consistent steering experience.

Ultra-low FFB Latency & Steering Response
Enjoy ultra-low force feedback latency and steering response with our system's 280MHz processor chip and optimized algorithms. This advanced technology makes it easy for drivers to control their vehicles with precision and ease, delivering an immersive and responsive driving experience.

New Generation FFB Filtering Algorithm
The R12 DD base is powered by MOZA's latest force feedback filtering algorithm, providing enhanced dynamic feedback that renders oversteer and understeer with greater clarity and richness.

Aviation-grade Aluminum
Experience unrivaled quality and durability with the MOZA R12. Its entire housing is constructed from aviation-grade aluminum alloy utilizing automotive-grade painting and laser etching, providing a long-lasting and extremely durable finish.

Intelligent Temperature
Control System
Our advanced system continuously monitors the temperature of the motor and electronic components in real-time, employing intelligent temperature control strategies to deliver stable and reliable performance in all circumstances.

Industrial Conductive Slip Ring
The base and the steering wheel are connected through a automotive-grade conductive slip ring with a life span of over 5 million revolutions. The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation.

Compact Design
The integrated motor design results in a compact size that still retains a standard 4 hole bottom mount pattern. It can be easily installed onto the vast majority of dedicated rigs and floorstands. In smaller spaces the base can be assembled with a desktop clamp, saving space whilst providing a convenient and enjoyable driving experience anytime, anywhere.

Cloud-based Mobile App Control
Enjoy on-the-fly changes using the MOZA app! Force feedback, pedal settings, and more can all be changed in real-time. One-click importing allows easy hassle free setup transfers to new devices.

Hand-off Protection
This function can effectively avoid the risk of injury and quickly help restore control by detecting that hands are off the wheel. Once activated, it will quickly stop any oscillation and safely center the wheel.

Compatibility

  • PC

What's In The Box

  • Wheel Base
  • Power Supply
  • Power Cord – AC cable (1.5m) & DC cable (1.8m)
  • Data Cable (1.8m)
  • Screw Kit
  • Dust Bag
  • Quick start guide & Warranty card
  • Quick start guide & Warranty card MOZA Stickers

Warranty

1 Year by Endless Passion Gaming

Delivery and Shipping

  • Non-Campaign Periods: Delivery within 1-3 business days.
  • Campaign Periods: Delivery within 3-5 business days.
  • Out of Stock: If any items are out of stock, we will contact you through WhatsApp so please remain contactable!

For any questions, please contact us through WhatsApp!

Specifications

Specs
Drive Type
Direct Drive

Max Wheel Rotation
Limitless

Housing Material
Aluminum

Housing Color
Black

Peak Torque
12 Nm

Peak Power
216W

Input Voltage
110V~220V AC —>36V DC

USB Refresh Rate
1000 Hz

App Functions
Supported

Quick Release
Supported

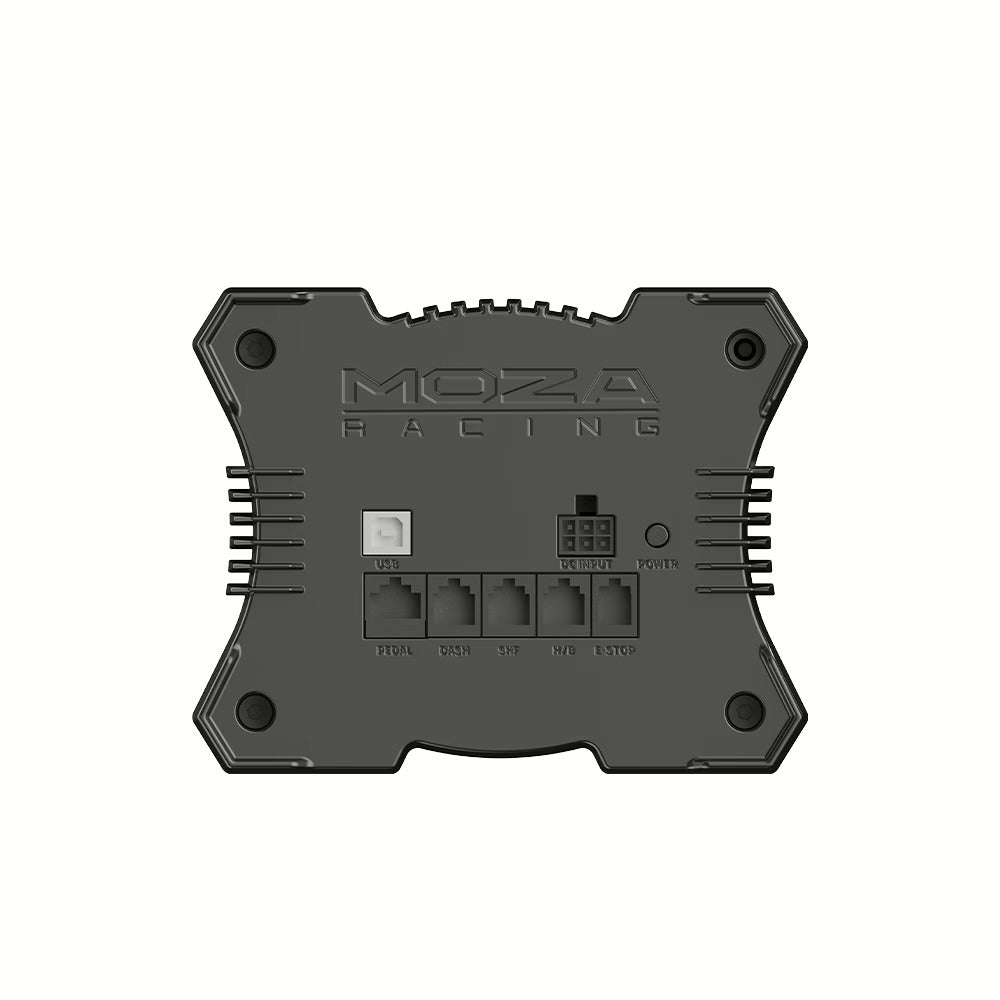

Connection Ports
Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop

Accessories
User manual, power adapter, cable, tool kit

Fixing Method
4-hole bottom mount

Desk Clamp
Optional

E-stop
Optional

Online Firmware Update
Supported

Dimensions (mm)
225.87 x 156.68 x 123.99
