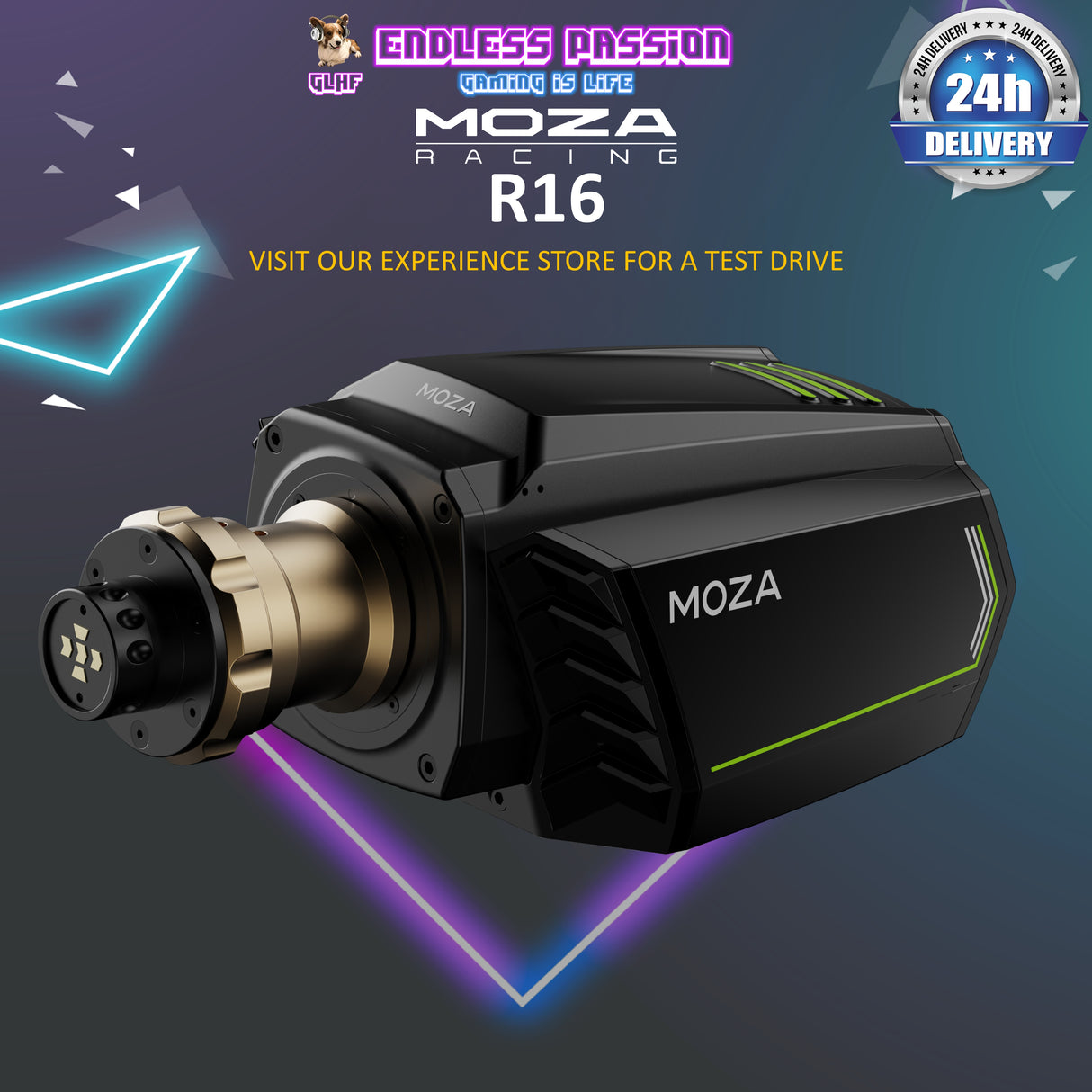

MOZA R16 Wheel Base 8.9 kg

$1,519.05 $1,599.00
Shipping calculated at checkout.

The MOZA R16 sim racing wheelbase is a formidable powerhouse that combines performance and style. With a peak torque of 16 Nm, it delivers impressive force feedback for an immersive racing experience. The all-aluminum alloy body and a sleek supercar-inspired design ensure great reliability without compromising on style. With hands-off protection and ultra-low static torque, you can focus on the race without distractions. Featuring 262,144 points of resolution, every subtle movement is faithfully captured. Take control with the MOZA Pit House App Control, allowing you to fine-tune settings with ease and jump into the race with its one-click launching features.



Product Features

16Nm of Direct Drive Power
With a huge 16Nm of torque, the R16 provides an impressive torque range to give the kind of accurate immersion that only direct drive wheels can provide. From GT to F1, feel every moment.

Sleek, Modern Design
Inspired by current supercar trends, the R16 sports a robust design and two-tone paint finish.

Sturdy All-aluminum Body
The R16 is made of aluminum alloy, giving the base a rock-solid feel and weight.

Ultra Low Static Torque
Feel everything through an optimized motor design, offering practically zero torque ripple, notching or cogging. Combined with powerful torque delivery, hard braking, curbs, and drifts are clearer and stronger than ever before.

Superior Temperature Control
The R16 encoder gives exceptional understanding of the wheel position, allowing for accurate, clear communication when racing.

262,144
Points of Resolution
The R16 encoder incorporates ultra high precision wheel position monitoring, allowing for accurate and clear feedback when racing.

Next Generation FFB Filtering Algorithm
The R16 DD base is powered by MOZA's latest force feedback filtering algorithm, providing enhanced dynamic feedback that renders oversteer and understeer with greater clarity and richness.

Dual-Mode Communication
The base and the steering wheel are connected via a military-grade wired conductive slip ring with a lifespan of more than 5 million revolutions. Simultaneously, the base communicates wirelessly with the wheel. This distinct patented design delivers exceptional stability and durability, allowing for seamless, infinite high-speed rotation.

Hands-off Protection
This function can effectively avoid the risk of injury and quickly help restore control by detecting that hands are off the wheel. Once activated, it will quickly stop any oscillation and safely center the wheel.

Speed-dependent Force Feedback Dampening
This function will increase the damping FFB effect as the vehicle speed increases and reduces the dampening as the vehicle speed decreases to accurately mimic a real race car, resulting in greater high-speed stability and low-speed maneuverability.

Multiple Connection Ports
With the ability to directly connect MOZA pedals, shifter, handbrake, and digital dash to the base, you not only conserve USB ports on your PC but also unlock the potential for simultaneous use of multiple devices.

Front Mount Compatibility
Featuring four front-facing holes designed for MOZA's front mounting bracket, this versatile design supports both front and side mounting options, optimizing legroom and catering to formula-style seating preferences.

Compatibility

  • PC

What's In The Box

  • Wheel Base R16
  • Power supply
  • Power cord – AC cable (1.5m) & DC cable (1.8m)
  • USB cable (1.8m)
  • Quick start guide & Warranty card

Warranty

1 Year by Endless Passion Gaming

Delivery and Shipping

  • Non-Campaign Periods: Delivery within 1-3 business days.
  • Campaign Periods: Delivery within 3-5 business days.
  • Out of Stock: If any items are out of stock, we will contact you through WhatsApp so please remain contactable!

For any questions, please contact us through WhatsApp!

Specifications

Platform
PC

FFB Drive System
Direct Drive

Communication Method
Wireless

Max Steering Angle
Limitless

Housing Material
Aviation Grade Aluminum Alloy

Color
Black

Peak Power
360W

Input voltage
110V~220V AC —>36V DC

USB Refresh Rate
1000Hz

V-shaped Struts


Encoder Resolution
262144ppr (18-bits)

Indicator
YES

App Functions
Supported

Quick Release
Supported

Connection Ports
Power, DC Input, E-stop, USB (Pogo pins for RM dash )

Accessories
User manual, Warranty card, Power supply, USB cable, Toolkit

Mounting Method
Bottom mount

Side Mount Option
With optional side/front mount bracket

Desk Clamp
Optional

Emergency Stop Switch
Optional

Online Firmware Upgrade
Applicable

Firmware Update
Applicable

Dimension (L x W x H)(mm)
327*170*130

Weight
8.9kg
